NX416L

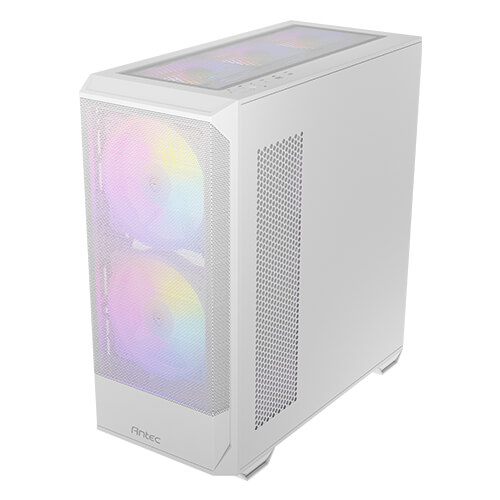

NX416L White
Mid-Tower ATX Gaming Case
Unique Design &
Powerful Heat
Dissipation
The NX416L features a unique design and excellent cooling performance. The mesh around the case and the fans on the PSU shroud create the possibility for a better heat dissipation of the graphics card.
11 x 120mm fans can be installed simultaneously.
High-Airflow mesh front
panel with 2 pre-installed
160mm ARGB Fans
2 pre-installed 160mm ARGB fans and the vast of mesh ensure massive airflow and maximum cooling performance without giving into dust prevention.
Swing-Opening Tempered Glass Side Panel
The swing-opening left panel made of tempered glass makes interior components easy to access, more convenient for installation and cleaning.
Powerful Cooling
Install a 240mm radiator with decorative storage panel removed.
Optimized
Storage Panel
Install two 2.5" SSD in the decorative panel beside the MB area.
Pre-Installed
3 ARGB fans
Build-in LED &
PWM Fan Controller
The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.
I/O Panel
Power, LED Control Button, 1 x USB 3.0, Headphone/Mic Combo Jack, Type-C
Neat Build
within Reach
24mm space for cable management ensures your PC build looks neat.
Up to 11 x 120mm Fans Simultaneously
Compatibility
Unlimited Performance
Max. GPU Length: ≤ 415mm (without front fan)
≤ 390mm (with front fan)
≤ 280mm (when radiator is installed on the side)
Dimensions
471 x 210 x 486mm (DWH)
SKU
SPECIFICATIONS
Fan
Dimensions 471 x 210 x 486mm(DWH)
471 x 218 x 486mm(DWH)(With handle)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, M-ATX, ITX
Front Access & Controls Power, LED Control Button, 1 x USB 3.0 , 1 x Type C , Headphone/Mic Combo Jack
Side Panel Tempered Glass Side Panel
Drive Bays
Expansion Slots 7
3.5" /2.5" 2/2
2.5" 3
Fan
Front 3 x 120mm / 3 x 140mm / 2 x 160mm Antec Custom Fan
Top 3 x 120mm / 2 x 140mm
Power Supply Shroud 2 x120mm
Side 2 x120mm
Rear 1 x 120mm
Included Fan(s) 2 x 160mm ARGB fans in front + 1 x 120mm ARGB fan in rear
Radiator Support
Front 120 / 140 / 240 / 280 / 360mm
Top 120 / 140 / 240 / 280 / 360mm
Side 120 / 240mm
Rear 120mm
Clearance
Max GPU Length ≤ 280mm (when radiator is installed on the side)
≤ 390mm (with front fan)
≤ 415mm (without front fan)
Max CPU Cooler Height ≤ 165mm
Max PSU Length (Include cable)≤ 240mm
Miscellaneous
Dust Filter Top / Bottom / Right Side
Net Weight 6.4 Kg
Gross Weight 7.5 Kg
Warranty 1 Year
UPC# 0-761345-10002-1 NX416L
0-761345-10016-8 NX416L White
