Built for Gaming
NX200M
NX Series-Micro-ATX mini tower gaming case
  • NX200M (Pre-installed 1 x 120mm regular fan in rear)
  • NX200M RGB (Pre-installed 2 x 120mm RGB fixed mode fans in front & 1 x 120mm RGB fixed mode fan in rear)
Creation of
Value & Function

The NX200M Micro-ATX Mini Tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes one 120mm fan in the rear. With support for up to a 240 mm liquid cooling radiator in front, NX200M is easy to build with and easy to cool.

Net Weight: 3.51 kgs
Gross Weight: 4.34 kgs

I/O PORTS

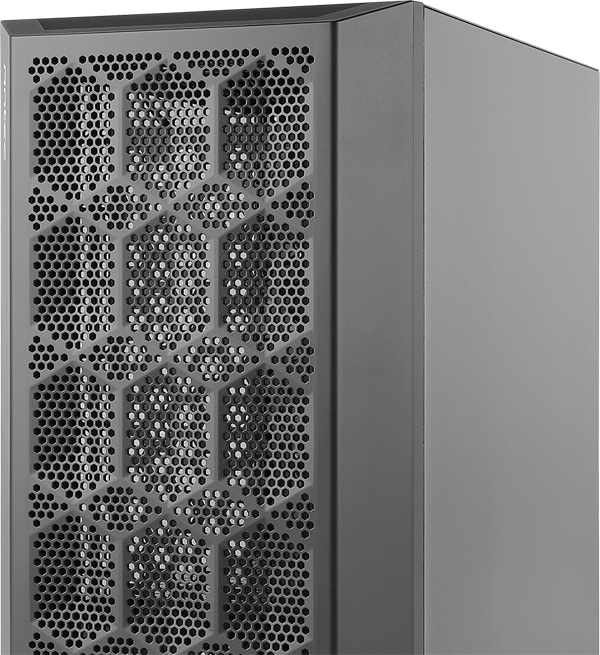

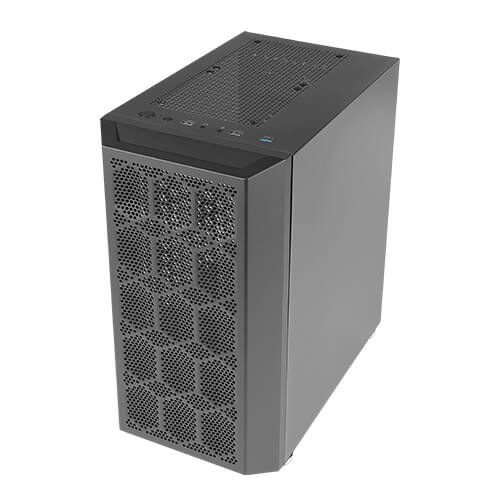

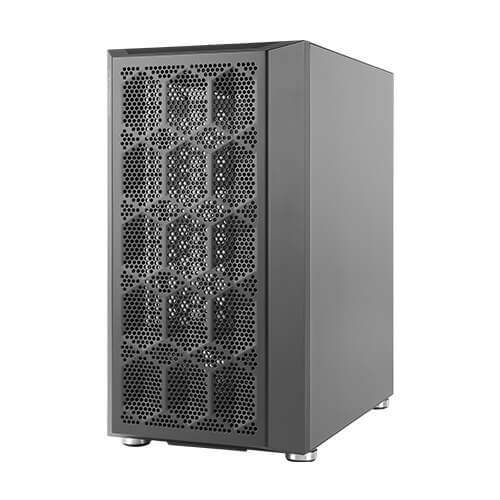

Large Mesh Front Panel Design
The large mesh design in front panel delivers ample airflow to your gaming components and provides good heat dissipation.
Supports up to 5 fans

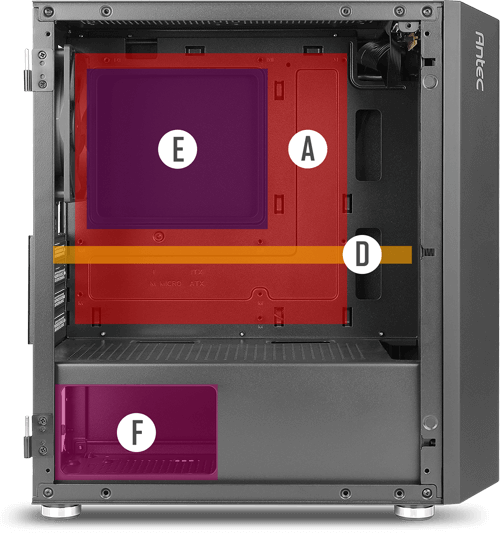

A
Motherboard support: Up to M-ATX

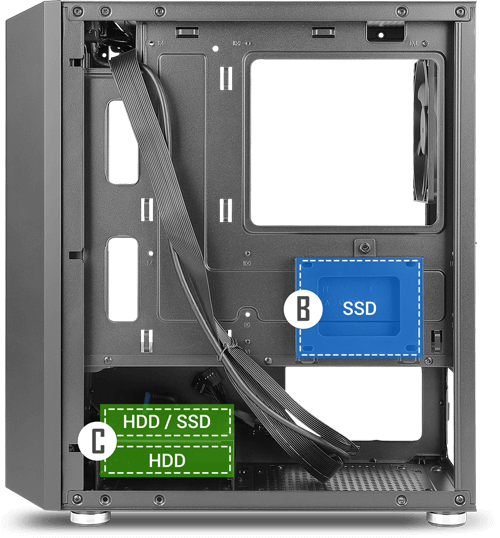

B
2.5" SSD: 1
C
3.5" HDD / 2.5" SSD (Convertible): 2/1
D
Graphics Card Support: Up to 275 mm
E
CPU Cooler Support: Up to 150 mm
F
PSU Support: Up to 150 mm
SPECIFICATIONS
Case Specification
Dimensions 351 x 200 x 390mm (DxWxH)
364 x 212 x 396 (DxWxH) (With handle)
Form Factor Mini Tower
Materials Steel + Plastic
Mainboard Support M-ATX, ITX
Front Access & Controls Power, Reset, 1 x USB3.0, 2 x USB2.0 , MIC/HD-AUDIO
Side Panel Tempered Glass Side Panel
Expansion & Drive Bays
Expansion Slots 4
3.5" /2.5"  2/1
2.5" 1
Fan Support
Front  2 x 120mm / 2 x 140mm
Top 2 x 120mm
Rear 120mm
Included Fan(s) 1 x 120mm regular fan in rear (NX200M)
2 x 120mm RGB fixed mode fans in front & 1 x 120mm RGB fixed mode fan in rear (NX200M RGB)
Radiator Support
Front 120 / 140 / 240mm
Rear 120mm
Clearance
Max GPU Length ≤ 275mm
Max CPU Cooler Height ≤ 150mm
Max PSU Length ≤ 150mm
Miscellaneous

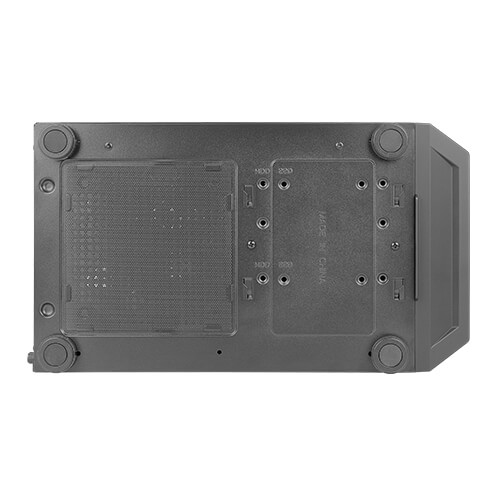

Dust Filter  Bottom
Net Weight 3.51KG (NX200M) / 3.84 kg (NX200M RGB)
Gross Weight 4.34KG (NX200M) / 4.45 kg (NX200M RGB)
Warranty 1 year
UPC# 0-761345-81027-2 (NX200M)
0-761345-81021-0 (NX200M RGB)
