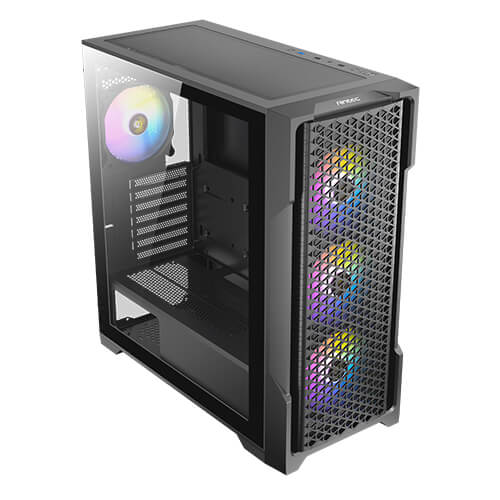

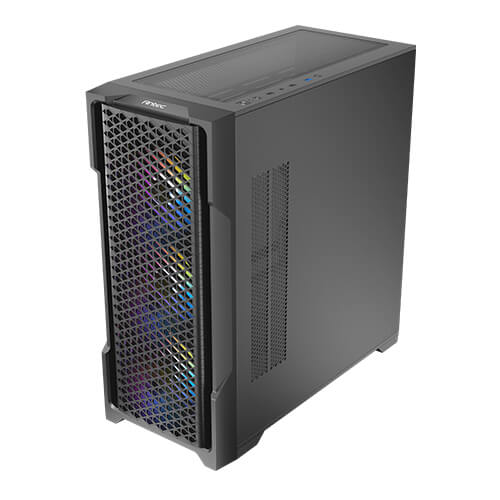

Mid-Tower Gaming Case
Unique Design &
Powerful Heat
The AX90 features a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 11 x 120mm fans can be installed simultaneously.

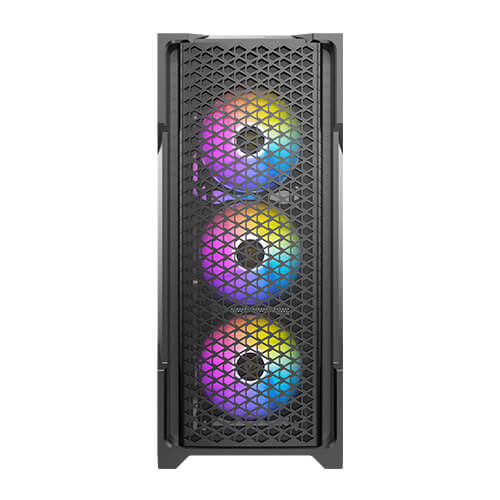

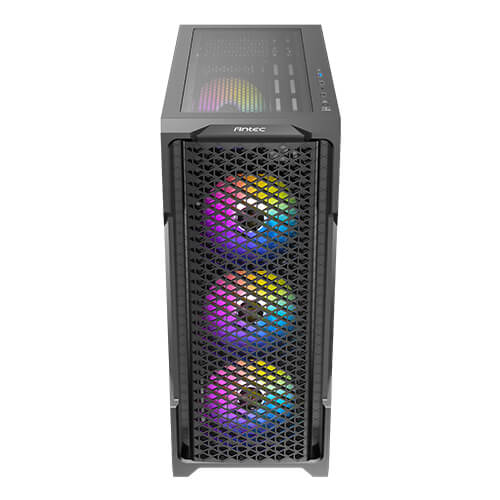

Mesh Front Panel
The diamond-shaped mesh front panel is ready to provide massive airflow for your system and the dust filtering function.
The spacious interior can accommodate both front and upper radiators up to 360mm.
Supporting 1 x 240mm radiator or
2 x 120mm fans side-mounted.
Mesh Front Panel
Enlarged mesh front panel provides massive airflow.
4 x 120mm Fans
Pull in massive air for cooling.
In Sync with Motherboard for ARGB Lighting
The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.
Neat Build within Reach
23mm space for cable management ensures your PC build looks neat.
23mm space for cable management
ensures your PC build looks neat.
Tempered Glass
Side Panel
Showcase your personalized hardware and
custom water-cooling system.
Up to 11 x 120mm Fans Simultaneously
Unlimited Performance
Max. GPU Length : 385mm
473 x 210 x 486 mm (DWH)
main spec
Dimensions 473 x 210 x 486mm(DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, M-ATX, ITX
Front Access & Controls Power,Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , MIC / HD-AUDIO
Side Panel 4MM Tempered glass
Drive Bays
Expansion Slots 7
3.5" / 2.5" 2 / 1
2.5" 2
Fan Support
Front 3 x 120mm / 3 x 140mm
Top 3 x 120mm / 2 x 140mm
Power supply 2 x 120mm
Side 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear
Radiator Support
Front 120 / 140 / 240 / 280 / 360mm
Top 120 / 140 / 240 / 280 / 360mm
Side 120 / 240mm
Rear 120mm
Max GPU Length ≤ 385mm
Max CPU Cooler Height ≤ 160mm
Max PSU Length (Include cable) ≤ 220mm(with HDD)
(Include cable) ≤ 410mm(without HDD)
Dust Filter Front / Top / Bottom / Right Hand Side
Net Weight 6.77 Kgs
Gross Weight 7.93 Kgs
Warranty 1 Year
UPC# 0-761345-10063-2
