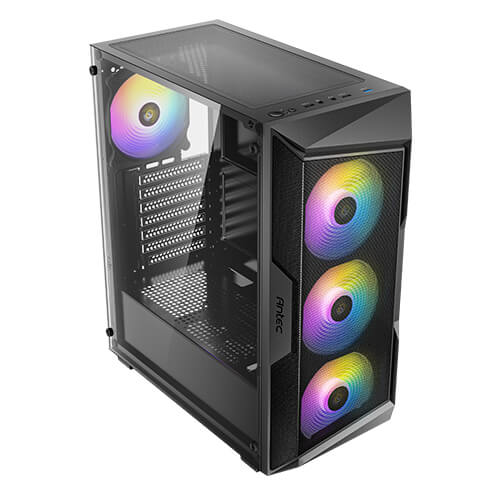

ax61 ELITE
Mid-Tower Gaming Case
Unique Design &
Powerful Heat

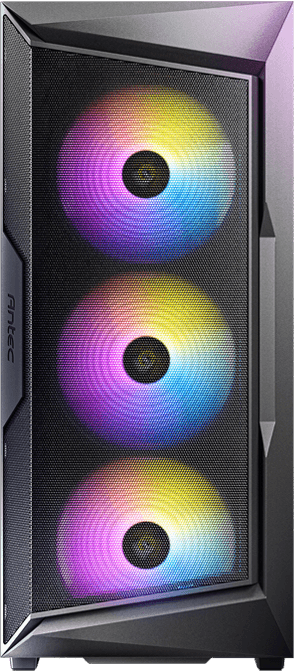

The front panel adopts an ample mesh design with geometrical styling for increasing airflow and dust prevention.
The ARGB lighting creates various visual effects.

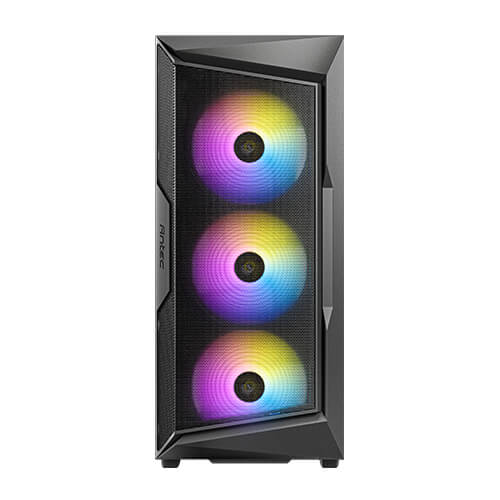

Stylish Mesh
Front Panel
Front Panel
All-round airflow paths provide highly efficient cooling. Air intakes at the front and bottom ensure outstanding heat dissipation.

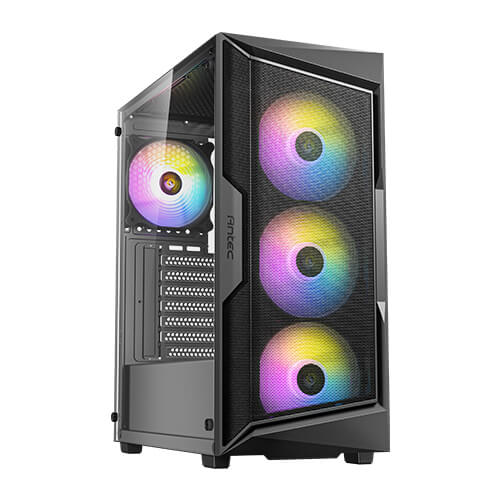

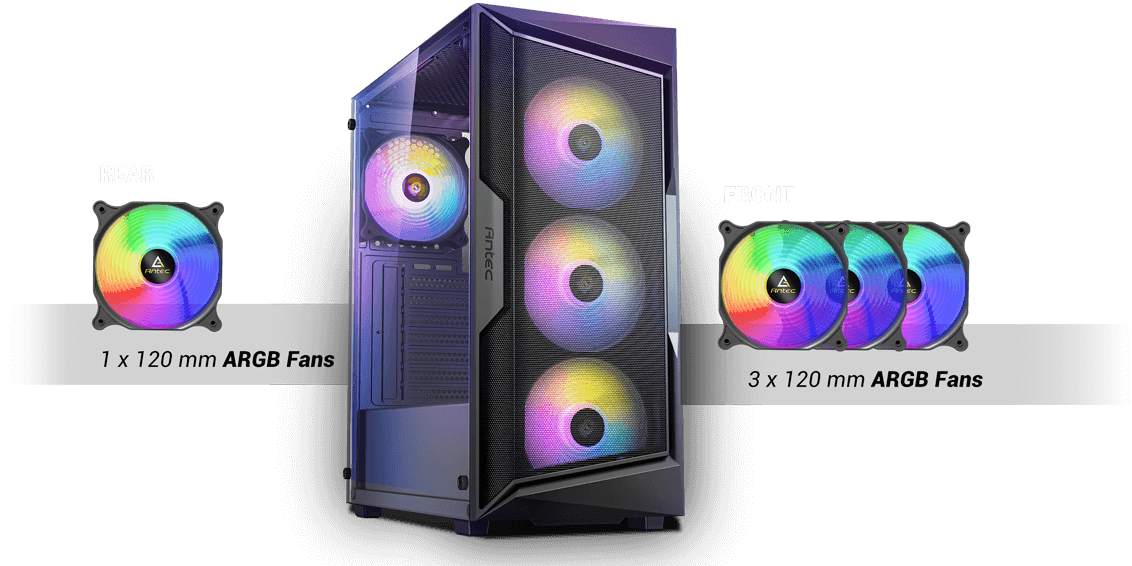

Pre-Installed 4 x 120mm ARGB fans
Work in sync with the motherboard.

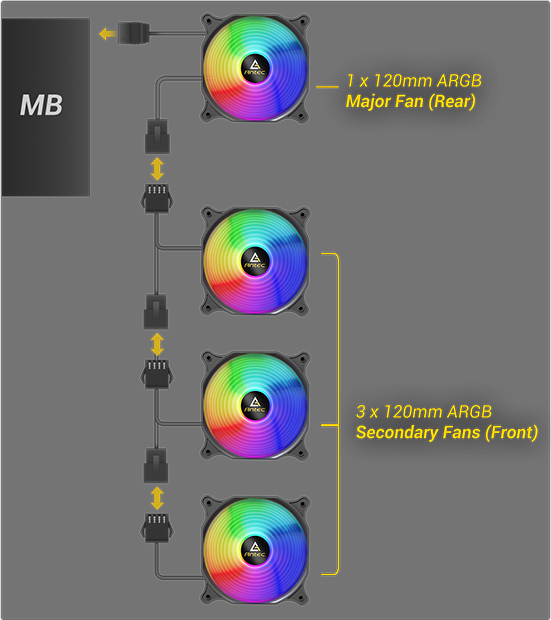

In Sync with Motherboard for ARGB Lighting
Use the main case fan to daisy-chain the other two fans for ARGB sync and create your personal style.

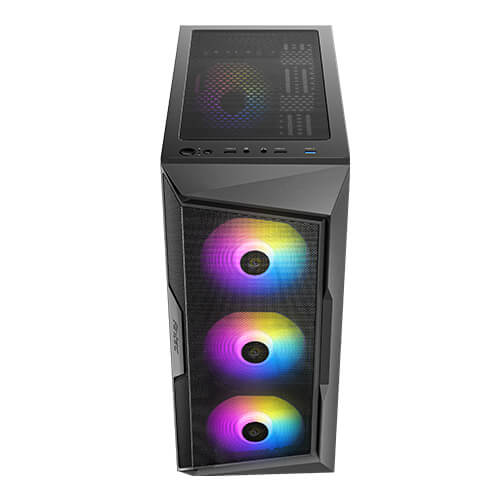

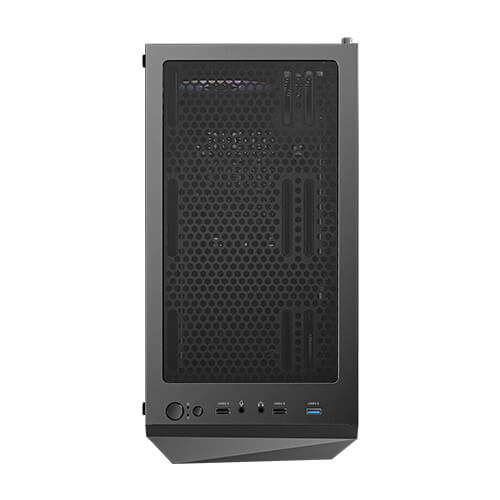

I/O Panel
Power, LED Control Button, USB2.0 x 2, MIC/HD-AUDIO, USB3.0 x 1

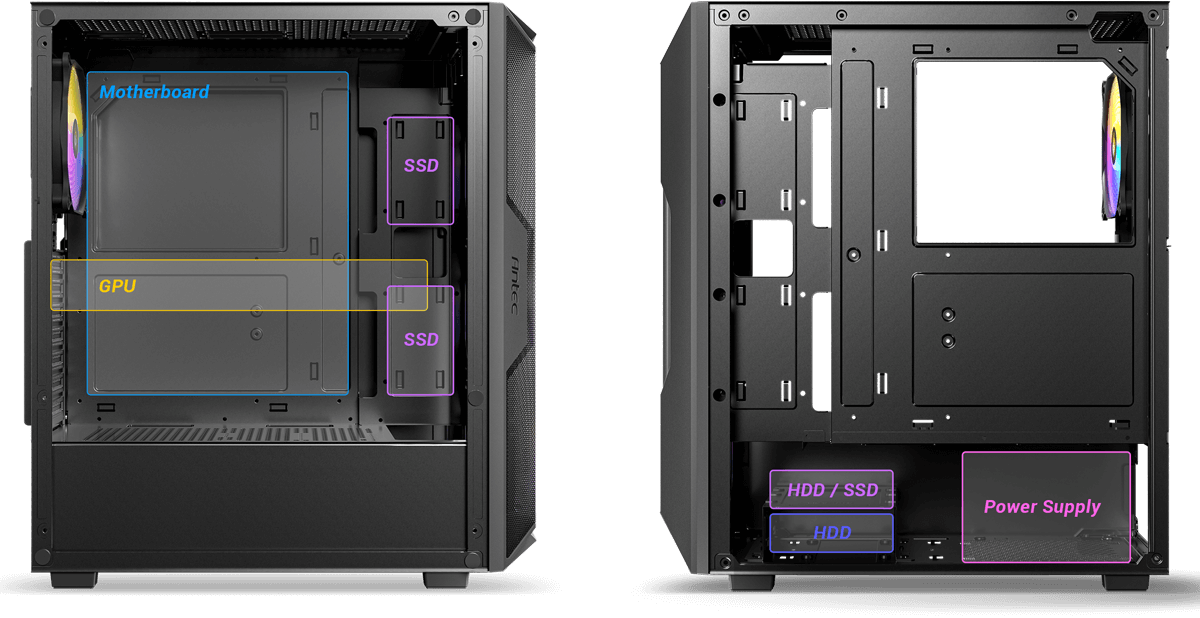

Neat Build within Reach

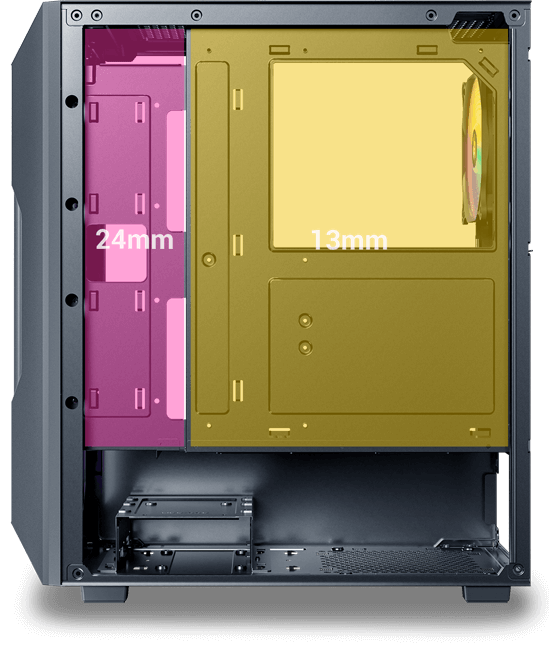

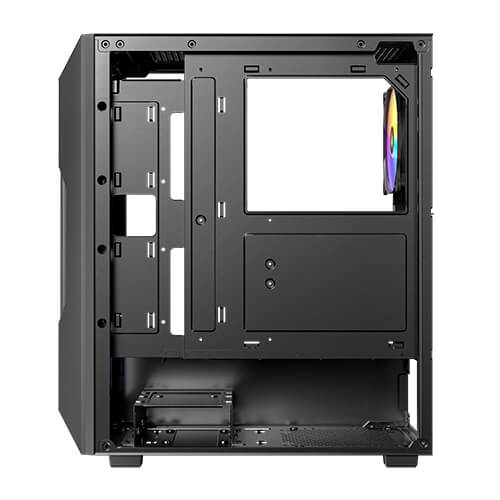

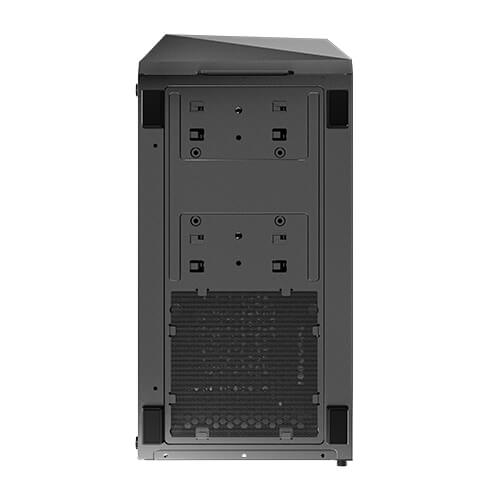

There are 24mm depth on the left side and 13mm on the right side for easy cable management.
There are 24mm depth on the left side and 13mm on the right side for easy cable management.

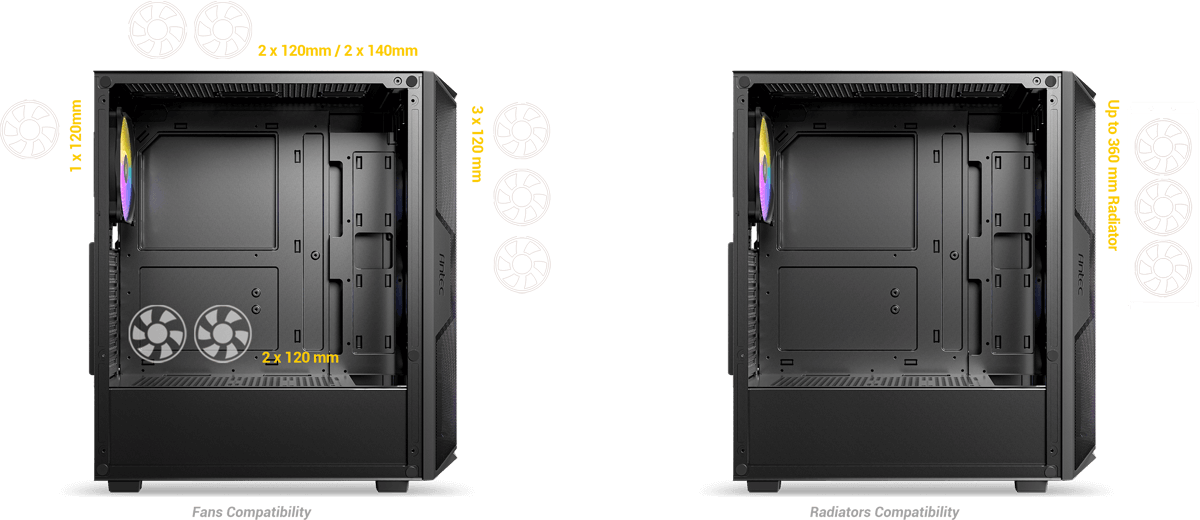

Up to 8 x 120mm Fans Simultaneously
Powerful Cooling Compatibility

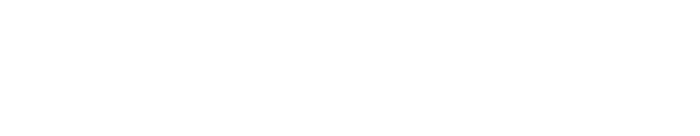

Max. CPU Cooler Height : 160mm. Supports most of the high-end air coolers.
Unlimited Performance
Max. GPU Length : 320mm
405 x 200 x 449 mm (DWH)
main spec
Dimensions 405 x 200 x 449mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , HD-AUDIO
Side Panel 4MM Tempered glass

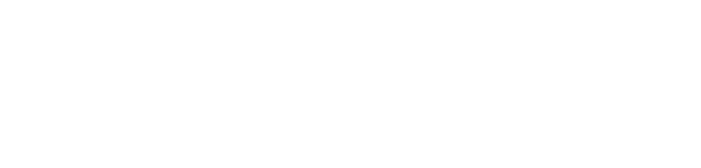

Drive Bays
Expansion Slots 7
3.5" /2.5" 2/1
2.5" 2
Fan Support
Front 3 x 120mm
Top 2 x 120mm / 2 x 140mm
Power supply 2 x 120mm

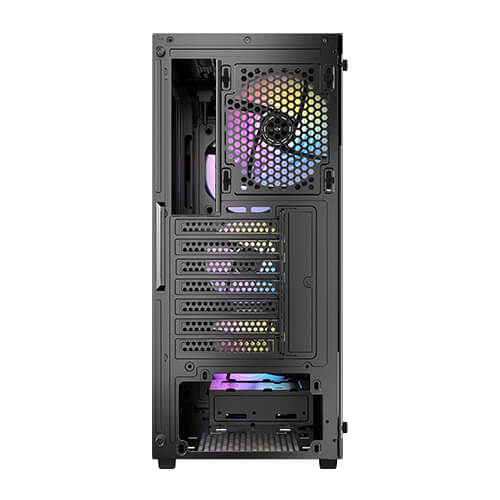

Rear 1 x 120mm
Included Fan(s) 3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear
Radiator Support
Front 120 / 240 / 360mm
Max GPU Length ≤ 320mm
Max CPU Cooler Height ≤ 160mm
Max PSU Length (Include cable) ≤ 165mm(with HDD)
(Include cable) ≤ 345mm(without HDD)
Dust Filter Top / Bottom
Net Weight 4.84 Kgs
Gross Weight 5.62 Kgs
Warranty 1 Year
UPC# 0-761345-10069-4
