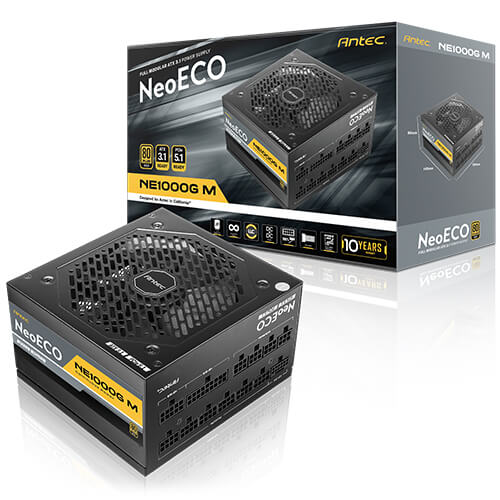

NE1000G M ATX 3.0
Unleash the Power
Model | NE1000G M ATX3.0 |
Type | ATX 12V 3.0 |
Dimension | 140(L)*150(W)*86(H) |
Modular | Full-Modular |
Warranty | 10 years |
Input Voltage | 100V-240V |
Input Current | 12A-6A |
Input Frequency Range | 60Hz-50Hz |
PFC | Active PFC |
Power Good Signal | 100-150ms |
Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
Output Capacity | 1000W |
Operation Temperature | 0~40°C |
Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
Fan | 120mm FDB Silent Fan |
Certifications | 80 Plus Gold |
Connector | 1 x 24(20+4)pin MB |
1 x 16(12+4)pin PCIE 5.0 12VHPWR | |
2 x 8(4+4)pin CPU | |
4 x 8(6+2) Pin PCI-E | |
12 x SATA | |
4 x Molex | |
Net Weight | 1.64 Kgs |
Gross Weight | 4.66 Kgs |
UPC# | 0-761345-11391-5 NE1000G M ATX3.0 0-761345-11392-2 NE1000G M ATX3.0 AU 0-761345-11393-9 NE1000G M ATX3.0 EC 0-761345-11394-6 NE1000G M ATX3.0 GB 0-761345-11395-3 NE1000G M ATX3.0 JP |
