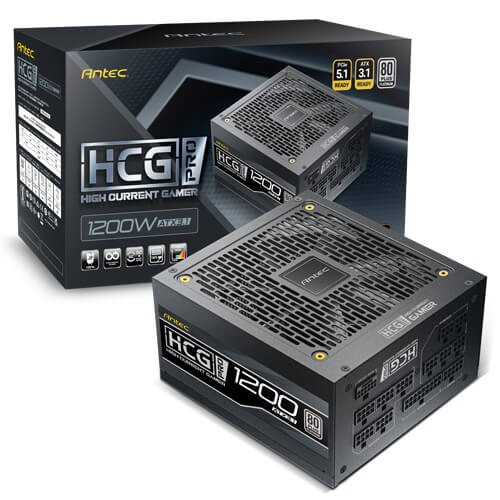

HCG1200 PRO Platinum ATX 3.1
FOR THE ULTIMATE GAMER
Model | HCG1200 PRO Platinum ATX3.1 |
Type | ATX 12V 3.1 |
Dimension | 160(L)*150(W)*86(H) |
Modular | Full-Modular |
Warranty | 10 years |
Input Voltage | 100V-240V |
Input Current | 15A-7.5A |
Input Frequency Range | 60Hz-50Hz |
PFC | Active PFC |
Power Good Signal | 100-150ms |
Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
Output Capacity | 1200W |
Operation Temperature | 0~40°C |
Regulatory | cTUVus/TUV/CB/RCM/CE/FCC/BIS/BSMI/KC/UKCA/ICES/CCC |
Fan | 135mm FDB Silent Fan |
Certifications | 80 Plus Platinum |
Connector | 1 x 24(20+4)pin MB |
1 x 16(12+4)pin PCIE 5.1 12VHPWR | |
2 x 8(4+4)pin CPU | |
3 x 8(6+2) Pin PCI-E | |
14 x SATA | |
3 x Molex | |
Unit Box Dimensions | 336mm*198mm*133mm |
Shipping Box Dimensions | 600mm*200mm*375mm |
Net Weight | 3.66kg |
Gross Weight | 4.24kg |
UPC# |
0-761345-20018-9 HCG1200 PRO P 0-761345-20019-6 HCG1200 PRO P JP 0-761345-20020-2 HCG1200 PRO P GB 0-761345-20021-9 HCG1200 PRO P EC 0-761345-20022-6 HCG1200 PRO P AU 0-761345-20023-3 HCG1200 PRO P CN |
