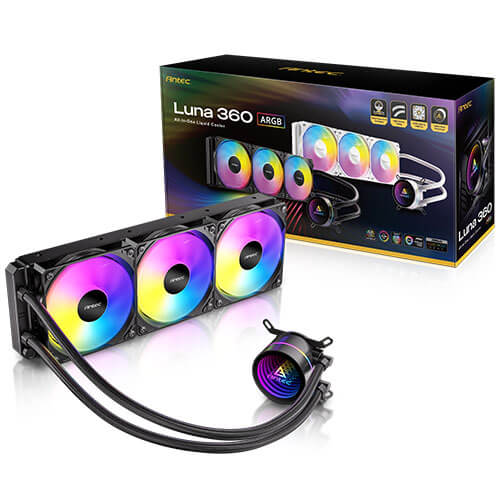

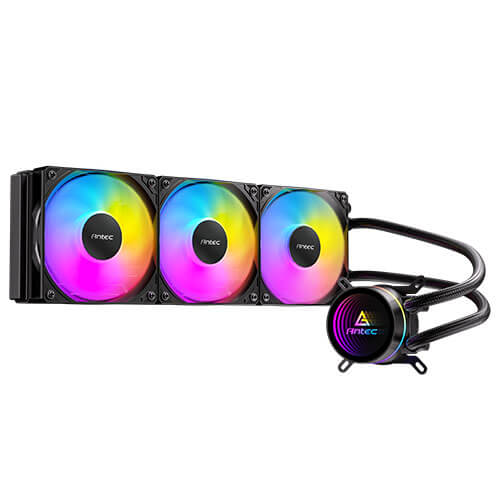

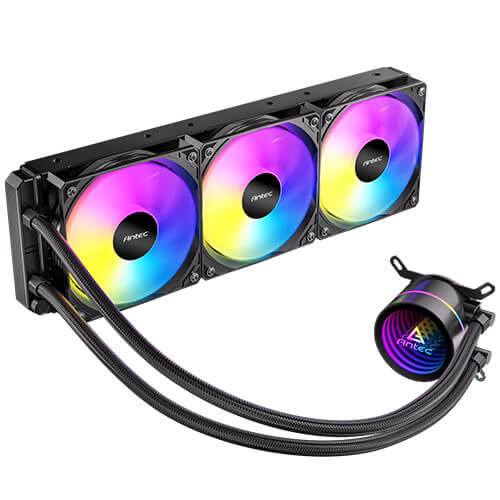

LUNA 360 ARGB

Luna 360

All-in-One Liquid Cooler

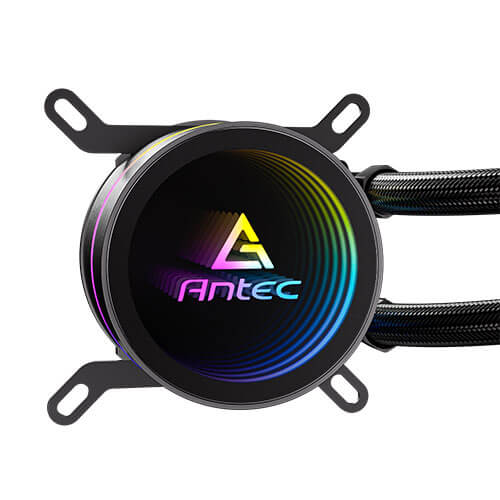

Infinity Mirror
Pump Head Design

The infinity mirror pump head design delivers outstanding cooling performance while creating layered, multi-angle lighting effects that add a chic touch to your build.

Highly Efficient
Cooling Pump

Massive Copper
Base Plate

Provides highly efficient cooling at all loads.

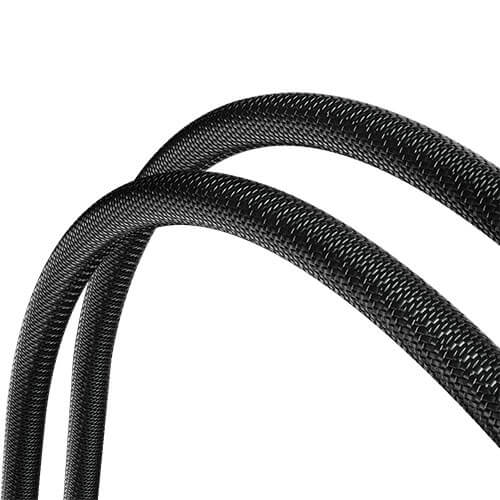

Elastic and Durable High-Density Tubing

Durable tubing protection against external damage.

Superior Fin Density

Massive 13 fins dissipate heat rapidly.

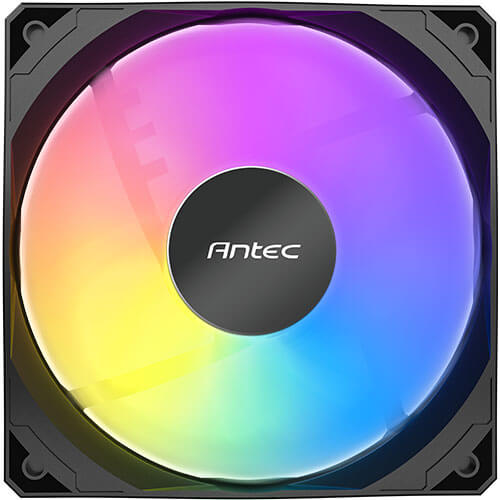

PWM ARGB Fan

Comes with powerful 120mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.

Extreme Cooling Performance

800±200~1800±10% RPM

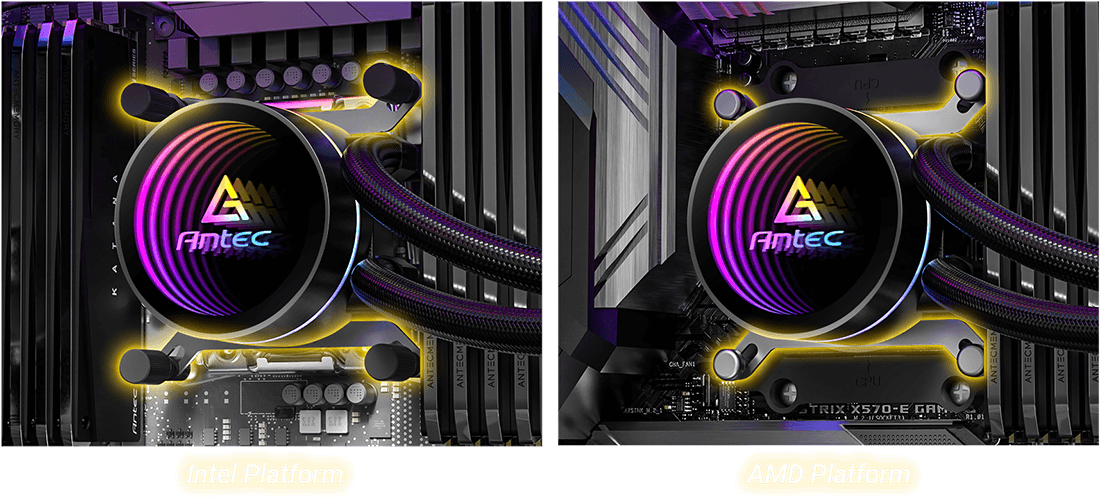

CPU Socket Compatibility

Intel compatibility : LGA115X / 1200 / 1366 / 1700 / 20XX
AMD compatibility : AM3 / AM4 / AM5

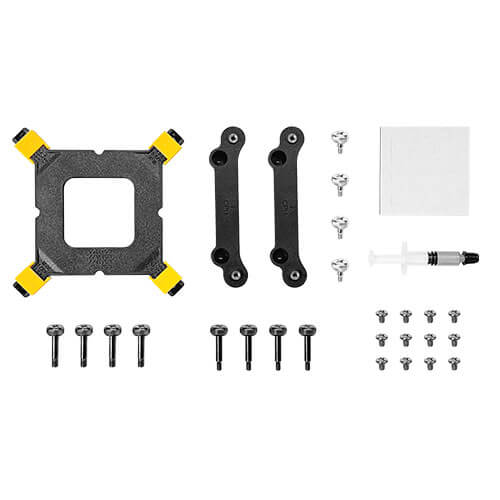

Part contents

Sku

SPECIFICATIONS

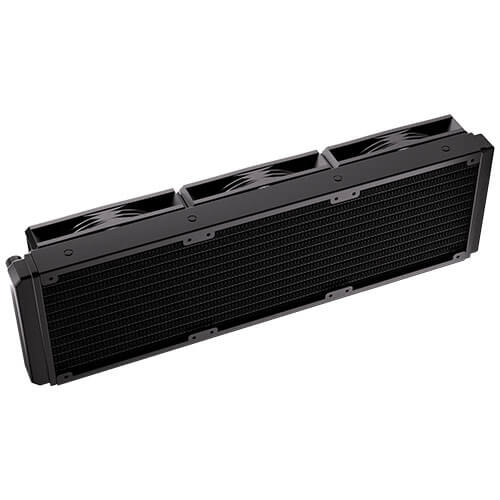

Radiator

Dimensions	397 x 120 x 27mm
Material	Aluminum

Pump

Dimensions	￠74.5 * 53.5 mm
Rating Voltage	DC 12 V
Minimum Startup Voltage	≥6.5 V
Fan Speed	2600±10% RPM
Rated Current	0.35 A
Consumed Power	4.2 W
Flow Rate	≥2000 mL/min
Water Pressure	2M
Operation Temperature	-10°C ~ +60°C
Fan Noise Level	≤23 dB(A)
Lifespan	40,000 hours
Connector	PUMP: 3-pin \| LED: 3-pin

Fan

Fan Type	PWM Fan
Fan Dimensions	120 * 120 * 25 mm
Bearing Type	Hydraulic Bearing
LED Type	Addressable RGB
Fan Speed	800±200~1800±10% RPM
Airflow	67.62 CFM (max.)
Air Pressure	2.09 mmH₂O (max.)
Fan Noise Level	33.05 dB(A)
Lifespan	40,000 hours
Connector	PH2.0 7pin (PWM+ARGB)
Rated Voltage	FAN: DC 12 V \| LED: DC 5 V
Operation Voltage	FAN: DC 7-13.2 V \| LED: DC 4.5-5.5 V
Rated Current	FAN : 0.35 A \| LED : 0.18 A

Socket Compatibility CPU		Intel : LGA 115X / 1200 / 1366 / 1700 / 1851 / 20XX AMD : AM3 / AM4 / AM5
Warranty		2 Years
UPC		0-761345-40075-6 (Luna 360 ARGB) 0-761345-40076-3 (Luna 360 ARGB White)
Net Weight		1.3Kg
Gross Weight		2.0Kg

GALLERY

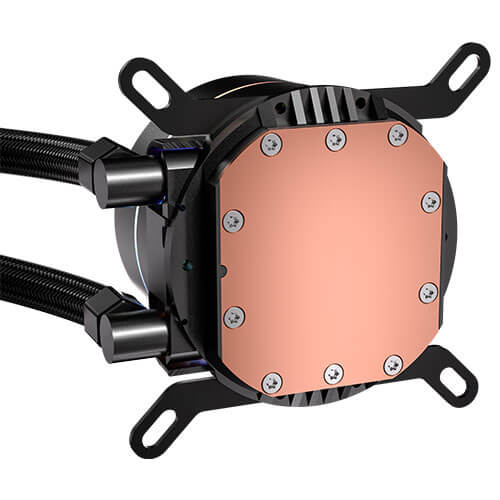

Massive Copper Base Plate

Massive Copper
Base Plate
