Fusion
120mm ARGB Fan
Create Your
Charisma

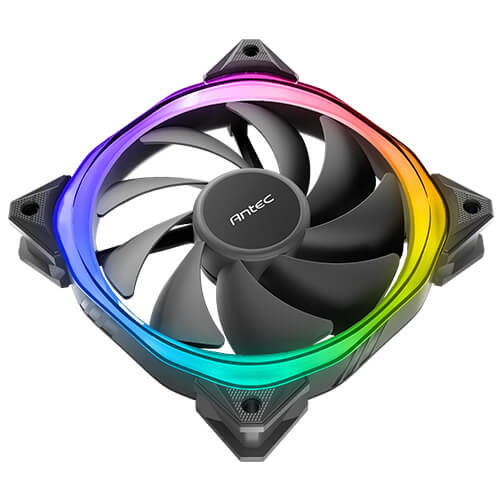

The brand-new Fusion 120 ARGB case fan features a unique dodecagon-shaped lighting ring with 16 LEDs & a hydraulic bearing fan. It will bring you an unforgettable experience visually and functionally.
Unique Multilateral Shaped
Lighting Frame Projects
Various Lighting Effects

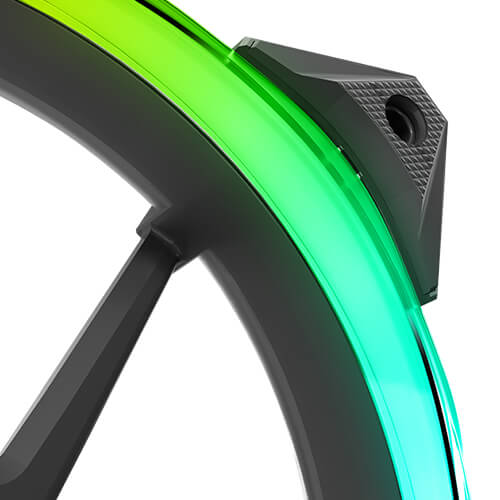

The unique dodecagon-shaped lighting ring with 16 LEDs projects various lighting effects from many angles.
Wonderful Texture
The well-processed fan structure and unique shape of fine craftsmanship bring the fan quality to the next level.
Compatible
with the
Motherboard
2 Individual Cable
8 Enlarged

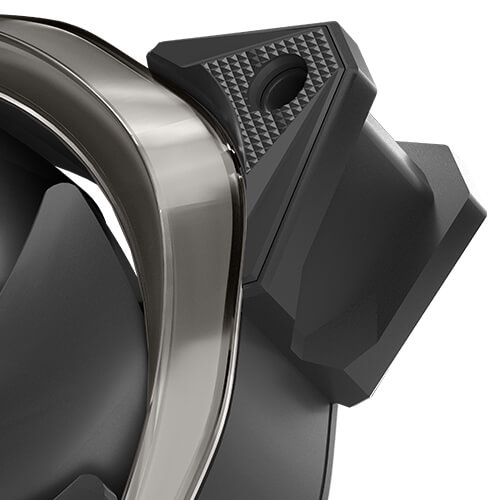

Anti-Vibration Pads
The anti-noise design with 8 anti-vibration pads can efficiently reduce noise.
Hydraulic Bearing fan
Extends the lifespan and reduces the noise.

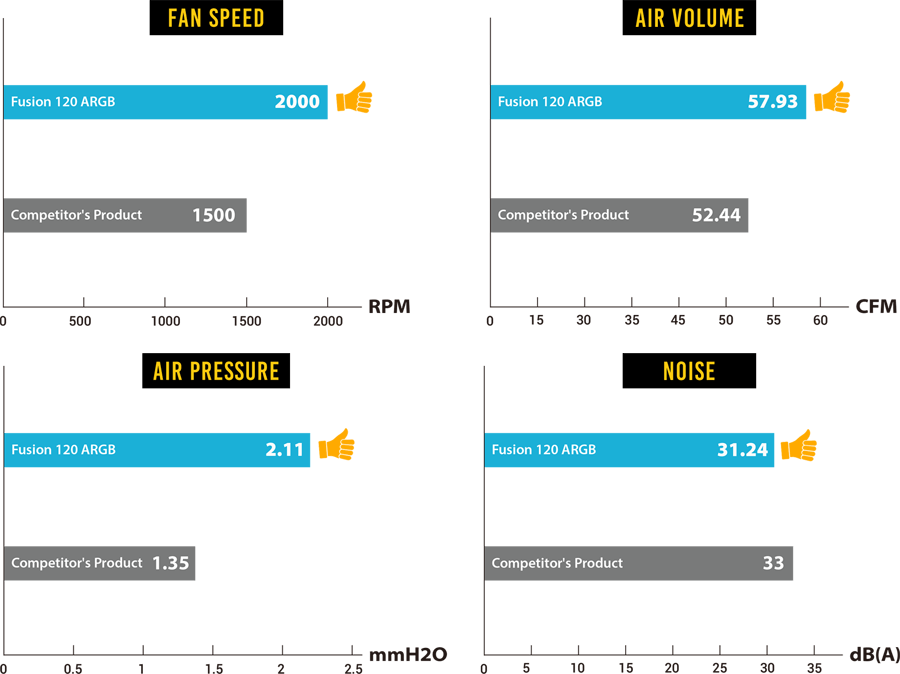

Outstanding Performance
ARGB/PWM Controller
Stunning ARGB lighting effects
& Massive Airflow
Package
SPECIFICATIONS
Fan
Model Name Fusion 120 ARGB
Fan Type PWM Fan
Dimensions 120*120*25 mm
Bearing Type Hydraulic Bearing
LED Type Addressable RGB
Fan Speed 600±200~2000±10% RPM
Airflow 57.93 CFM (max.)
Air Pressure 2.11 mmH₂O (max.)
Fan Noise Level 17.02~31.24 dB(A)
Lifespan 40,000 hours /hrs 25°c
Connector FAN: 4-pin PWM | LED: 3-pin
Rated Voltage FAN: DC 12 V | LED: DC 5 V
Operation Voltage FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
Rated Current FAN : ≤ 0.21 A | LED : ≤ 0.58 A
Warranty
2 years
UPC#
Fusion 120 ARGB / 0-761345-57009-1 (Previous) / 0-761345-77702-5 (New)
Fusion 120 ARGB_3 pack / 0-761345-57010-7
Fusion 120 ARGB_5pack / 761345-57004-6 (Amazon Only)
