Performance 1 silent

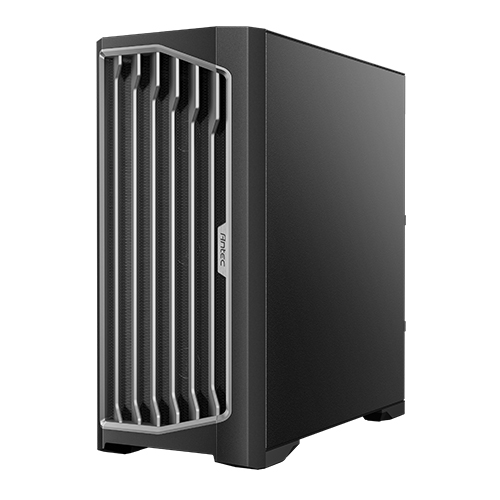

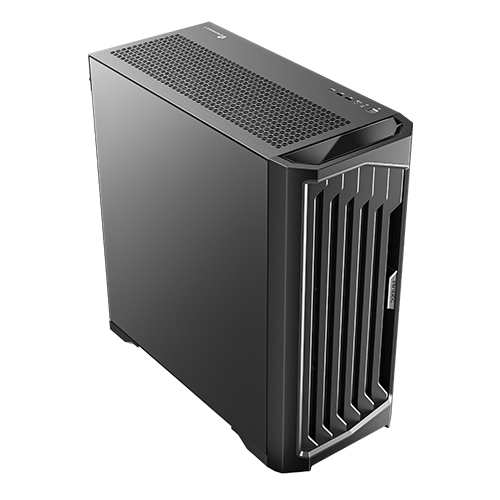

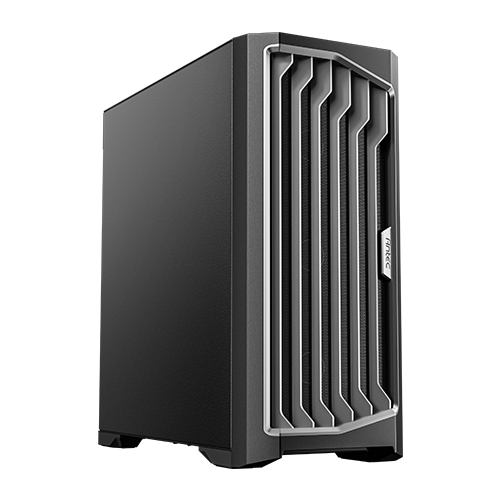

E-ATX HIGHLY COMPATIBLE PC CASE
BEST DUST PREVENTION DESIGN

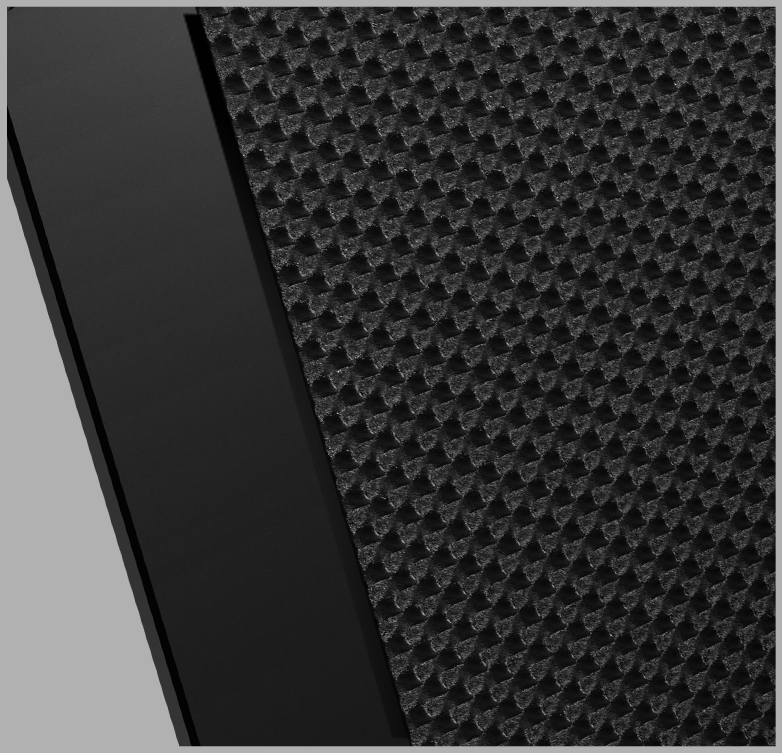

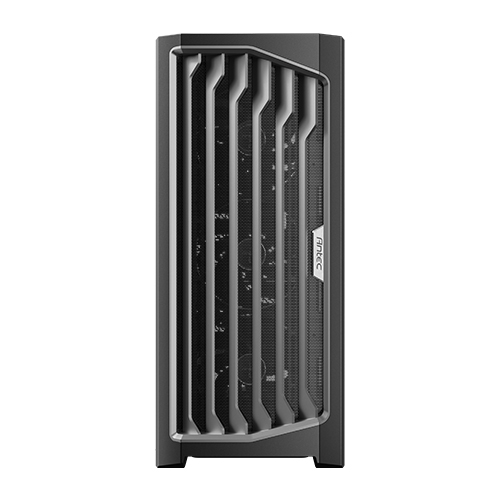

Exquisite Steel Mesh

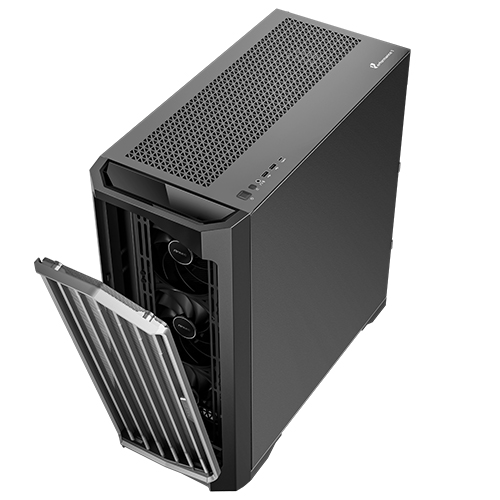

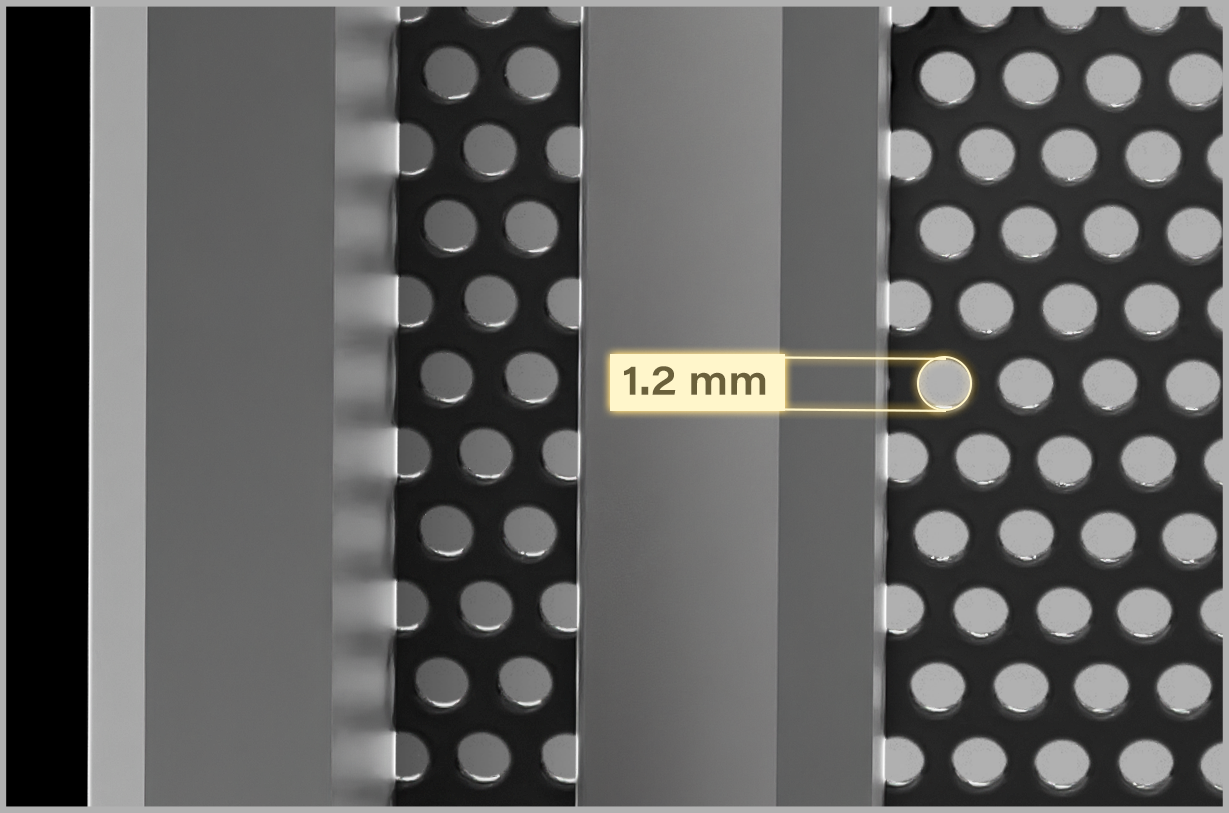

The mesh front panel adopts the 1.2mm vent holes and the magnetic & clip-on design with easy access.

I/O Panel
  • Including the mainstream Type-C(10Gbps) port for high-speed transfer.
  • Included dust plugs for dust prevention.
  • Mic/Audio 2-in-1 port.
SILENT PC CASE

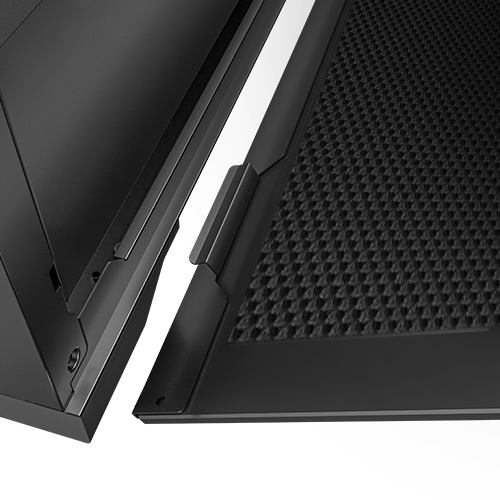

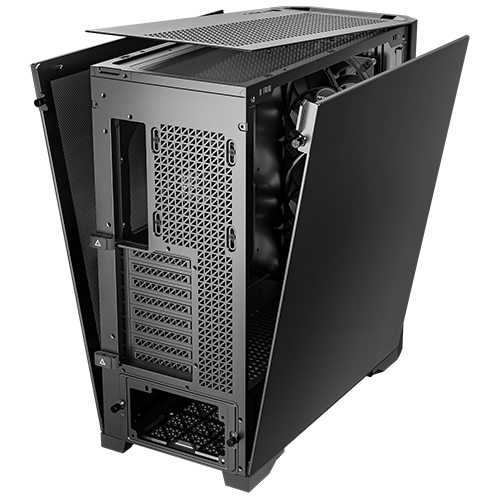

Sound-Dampening Side Panels

Both side panels are designed with sound-dampening foam, providing even better overall sound insulation.

EVERYTHING ORGANIZED

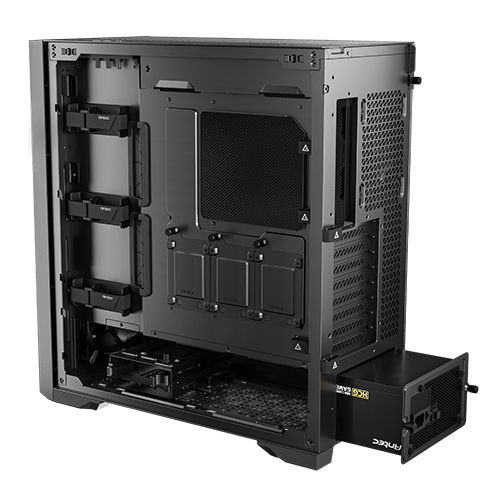

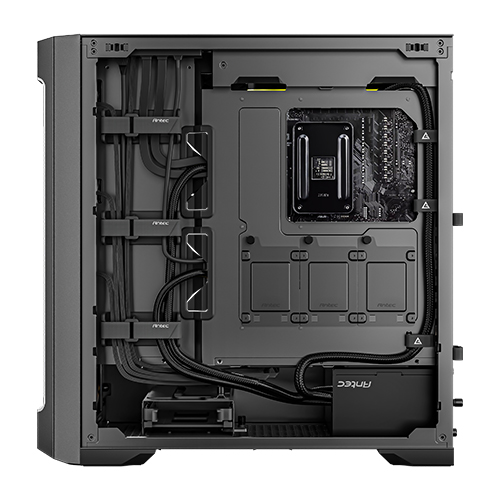

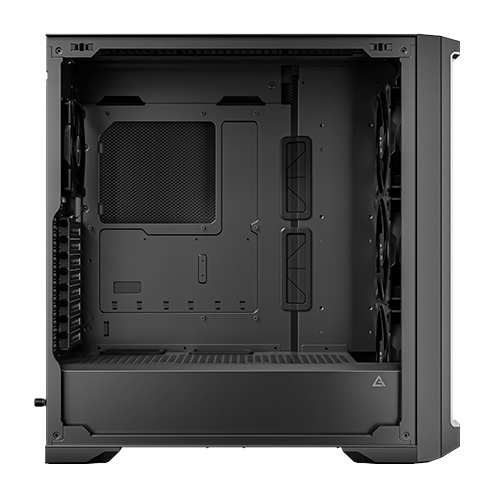

Cable Management on Point
2 cable covers are included for beautifying the cable management area.
There are ten sets of velcro straps for easy cable management.
  1. 1Three sets of velcro straps for fan & I/O cable routing.
  2. 2Five velcro straps for hardware and power supply cables.
  3. 3Two velcro straps at the rear for rear I/O cable routing.

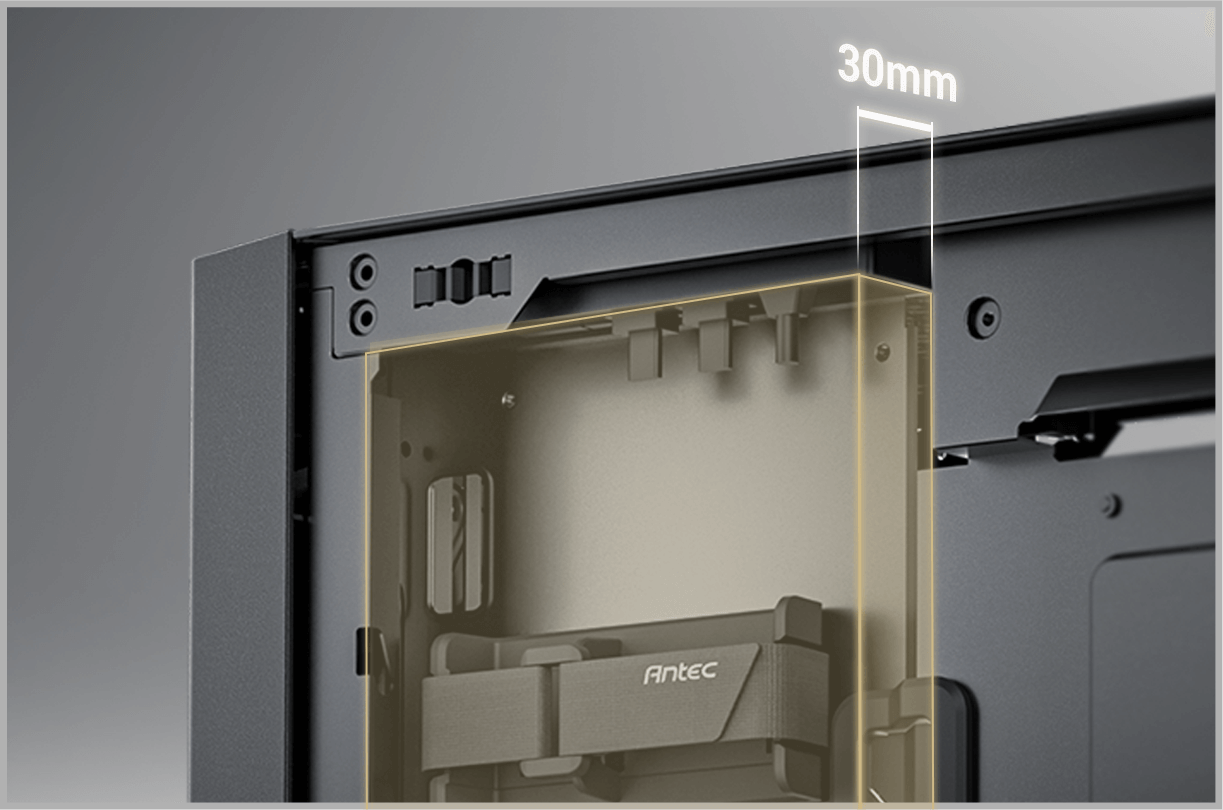

Clearance for Cable Management: 30mm
Easy Installation

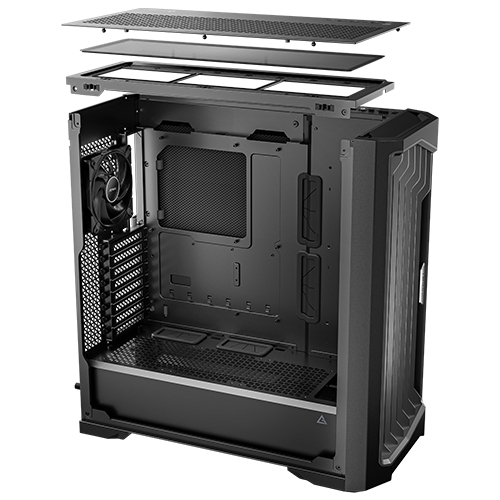

Removable Top Cooling Bracket.
PRE-INSTALLED 4
TRANQUIL
SILENT PWM FANS
MORE TRANQUIL, MORE AIRFLOW

Unique fan blade and frame design offers powerful airflow with low noise accomplished.

Exquisite craftsmanship

Minimal clearance between fan frame and blades, achieving maximum operational efficiency.

Vibration-Absorbing & Anti-Noise Pads

Equipped with eight damping feet to prevent chassis and fan resonance, reducing noise.

POWERFUL AIRFLOW PATH DESIGN

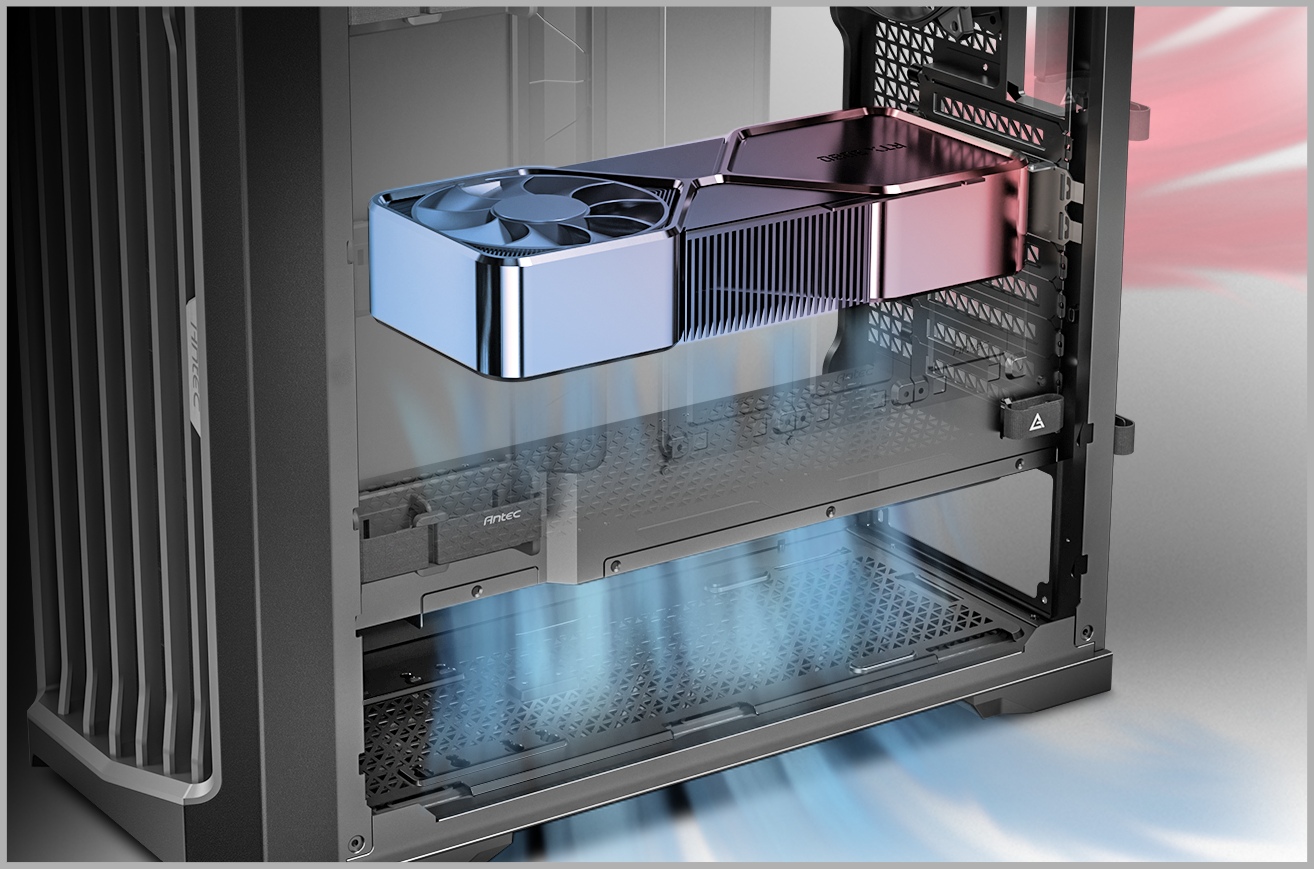

Best Airflow Path
for GPU Cooling

Airflow-enhancing mesh front panel provides massive air.

Ample mesh at the bottom with fans (optional) on the meshed PSU shroud provides the best performance for the GPU cooling

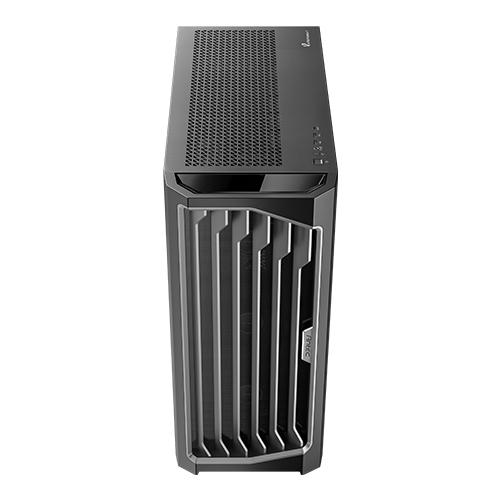

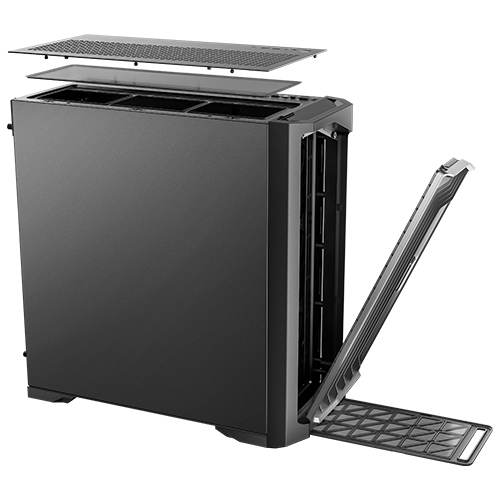

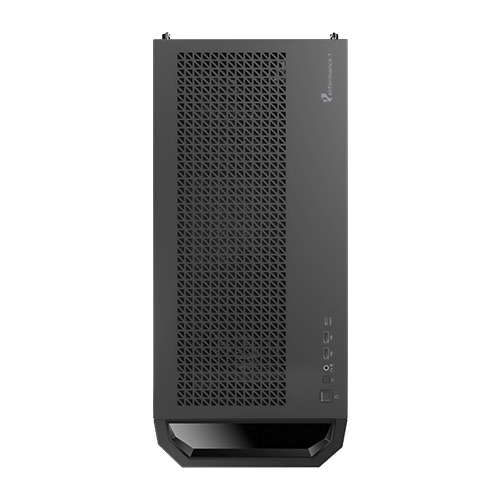

  1. Top: Magnetic dust filter.
  2. Front: Magnetic & clip-on dust filter.
  3. Bottom: Full-sized pull-out dust filter.
HIGHLY COMPATIBLE FULL-TOWER PC CASE
Supports RTX 40 Series Graphics Cards
Full-tower PC case in 230mm width supports the up-to-date 40 Series GPUs and high-end PC components.

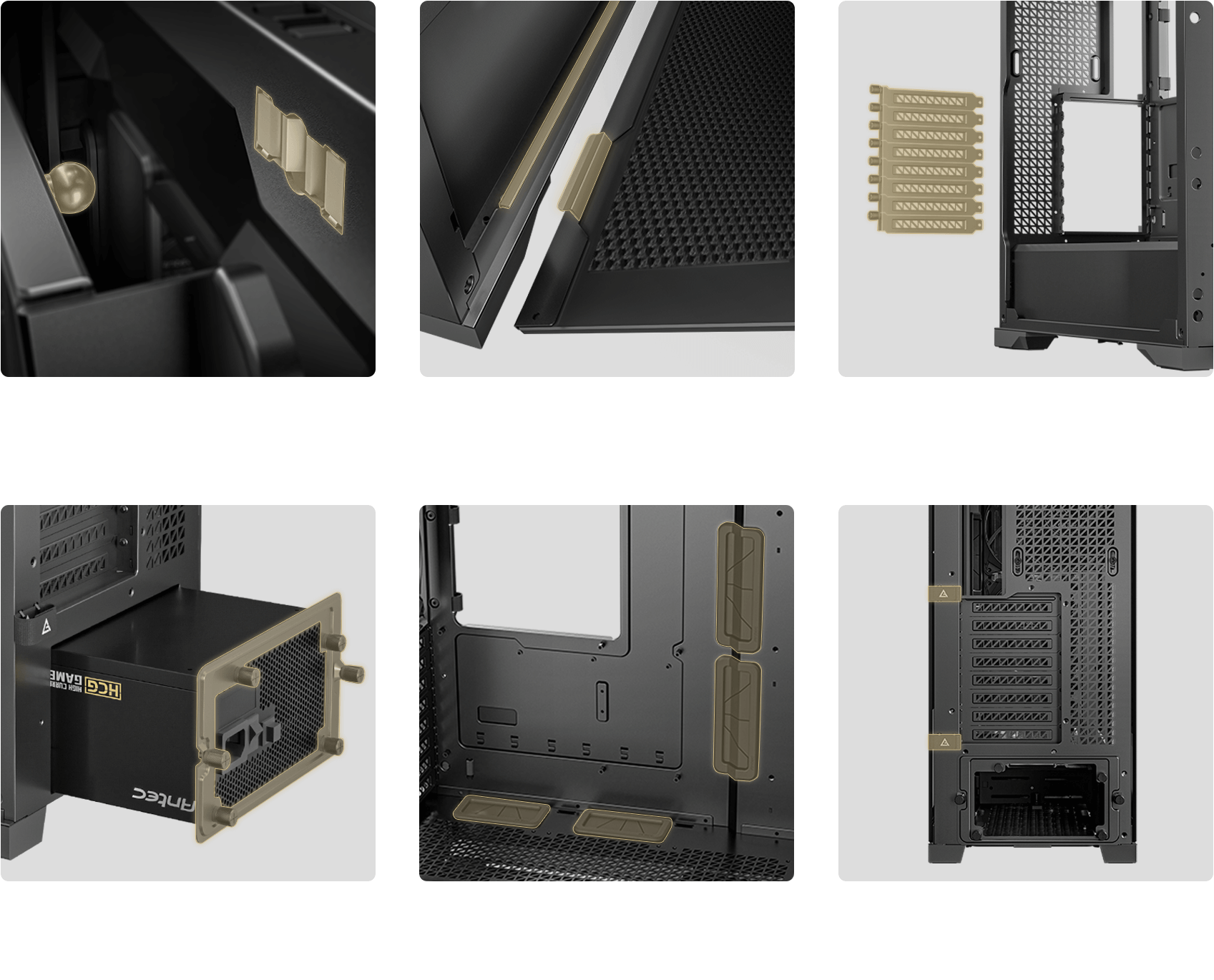

THOUGHTFUL DESIGN
Detailed Features

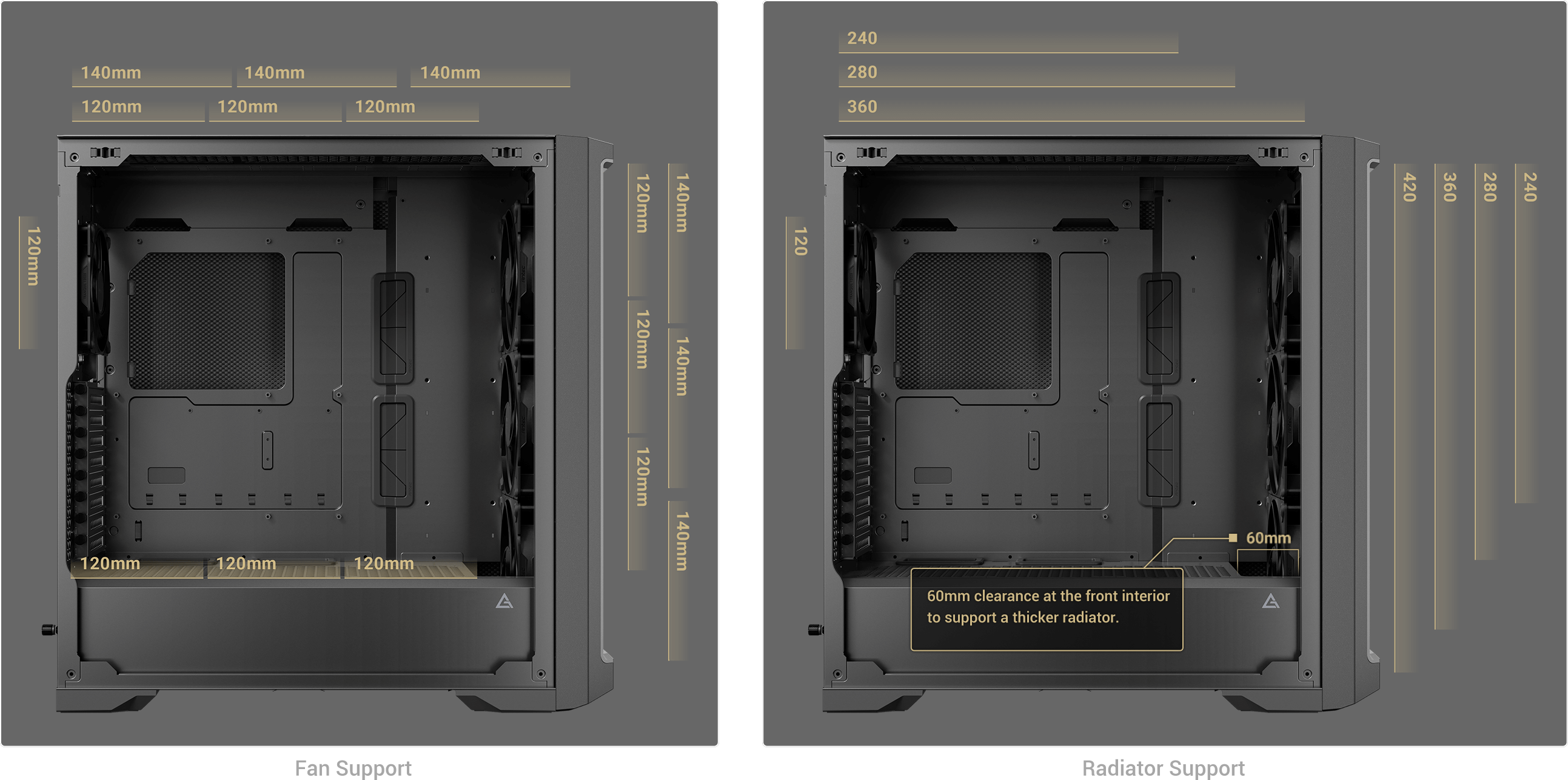

COOLING COMPATIBILITY
Best Cooling Design
  1. Support a 420mm radiator at the front. (When installing a 420mm radiator at the front, the radiator at the top must be less than 360mm.)
  2. Supports 360mm radiators at the front and top simultaneously.
  3. Up to 10 fans simultaneously.
STORAGE COMPATIBILITY
Modular Drive Trays
Supports up to 5 drives: 2 removable drive trays for 3.5" HDD/2.5" SSD & 3 drive trays for 2.5" SSD.

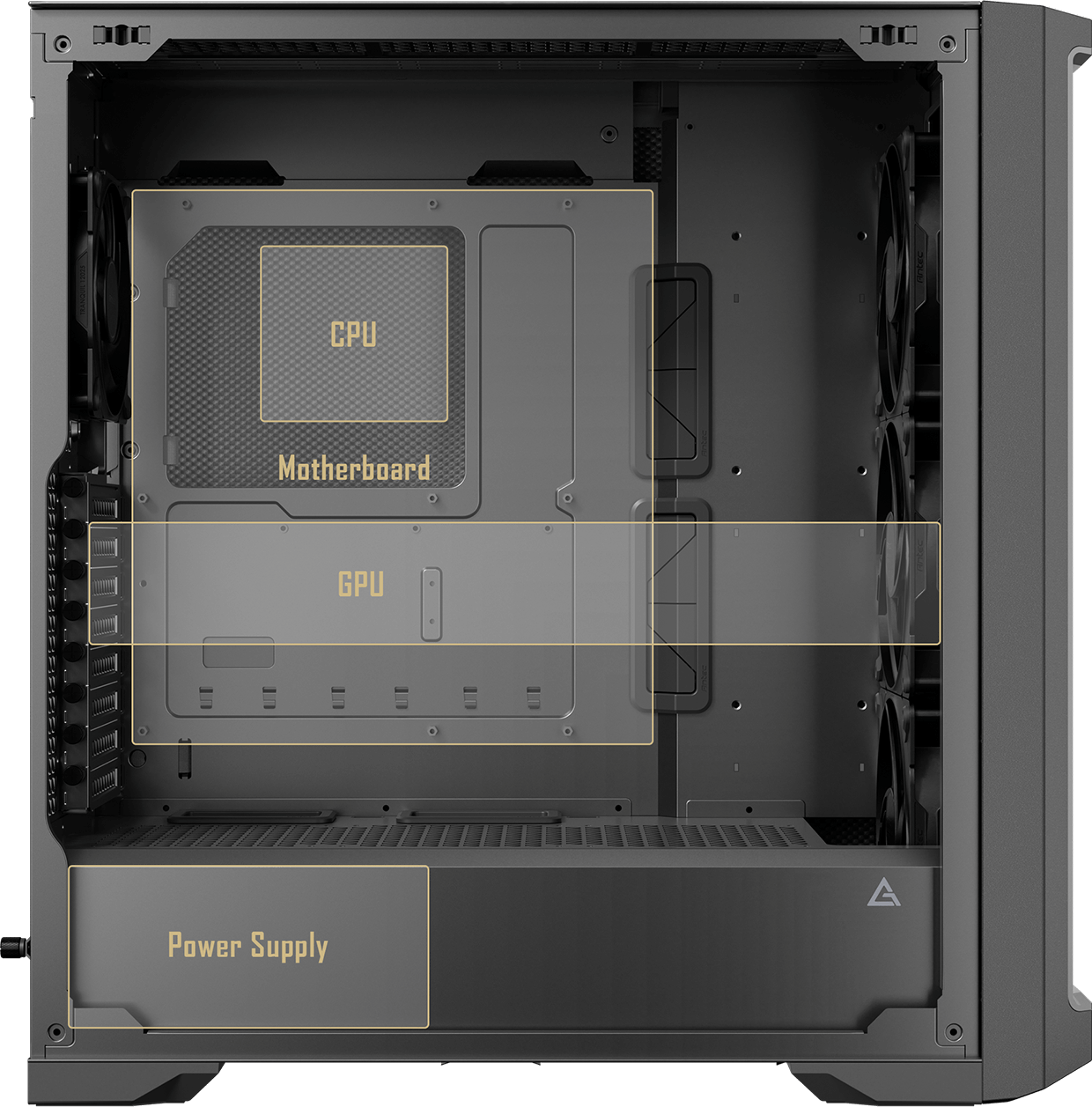

CASE COMPATIBILITY

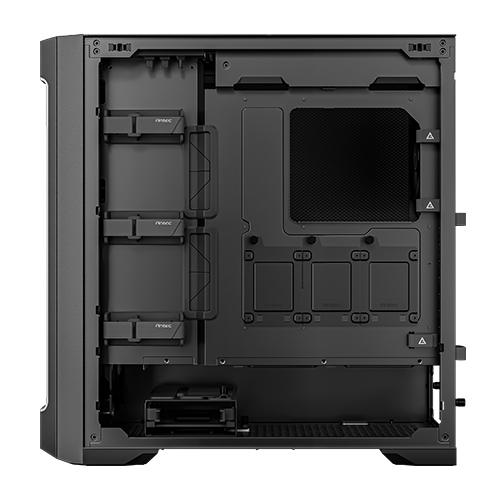

Extensive Interior
SPECIFICATIONS
main spec
Dimensions 522 x 230 x 522 mm (DWH)
Form Factor Full Tower
Materials Steel + Plastic
Mainboard Support E-ATX, ATX, Micro-ATX, ITX
Front Access & Controls Power, Reset , USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack
Side Panel Sound dampening Side Panel(Both Sides)
Drive Bays

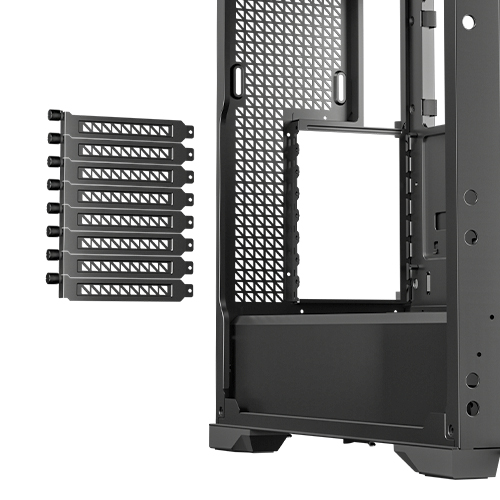

Expansion Slots 8
3.5" /2.5" 2/2
2.5" 3
Fan Support
Front 3 x 120mm / 3 x 140mm
Top 3 x 120mm / 3 x 140mm
Power Supply Shroud 3 x 120mm
Rear 1 x 120mm
Included Fan(s) 3 x 140mm PWM Silent fans in front + 1 x 120mm PWM Silent fan in rear
Radiator Support
Front 120 / 140 / 240 / 280 / 360 / 420mm
Top 120 / 140 / 240 / 280 / 360mm
Rear 120mm
Clearance
Max GPU Length ≤ 400mm
Max CPU Cooler Height ≤ 175mm
Max PSU Length (Include cable) ≤ 245mm(with HDD)
(Include cable) ≤ 440mm(without HDD)
Miscellaneous
Dust Filter Front / Top / Bottom
Net Weight 12.08 Kg
Gross Weight 14.35 Kg
Warranty 2 Years
UPC# 0-761345-10090-8
