P20C
Mid-Tower E-ATX Gaming CaseOutstanding Compatible Performance
P20C (Pre-installed 3 x 120mm PWM fans in front)
P20C Elite (3 x 120mm PWM fans in front & 2 x 120mm PWM fans on PSU shroud & 1 x 120mm PWM fan in rear)

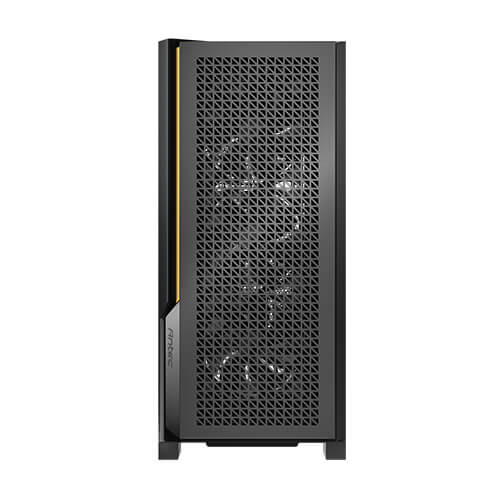

MASSIVE METAL MESH FRONT PANEL
Simple Assembly &
Superior Cooling
Antec Performance Series P20C adopts a unique metal design, providing a massive airflow path. With the full-size dust filter, the P20C can reach the balance between cooling and dust prevention. The pin-type metal front panel is effortlessly removable, and the clip-on dust filter makes cleaning easy. The well-designed styling will give you a remarkable PC showcase.
  • Full-Size Clip-On Dust Filter at the Front
  • Magnetic Dust Filter at the Top

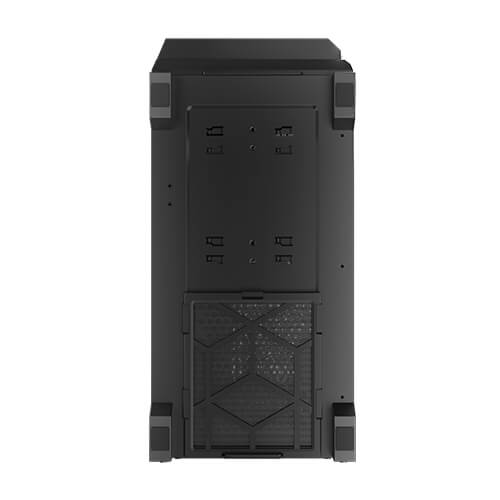

  • Pull-Out Dust Filter at the Bottom
PRE-INSTALLED FANS
3 x 120mm PWM
Fans Included
  • Pre-installed fans at the front provide massive airflow, and the PWM function can easily reach the balance between cooling and silence.
  • The included 1 to 4 fan splitter cable makes cable management easy.
HIGH-SPEED TRANSFER
Type-C 3.2 Gen 2 Ready
Built-in Type-C 3.2 Gen 2 port provides transfer speeds up to 10 Gbps.
  • Power
  • Reset
  • HD-AUDIO
  • MIC
  • USB 3.0 *2
  • Type-C 3.2 Gen 2
UNLIMITED CONFIGURATION OPTIONS
High flexibility
for Expansion
Features an extensive interior and powerful compatibility. Supports 2 x 360mm radiators at the front and the top simultaneously.
PC-DIY SHOWCASE
Supports Vertical
GPU Installation
Ready to provide users with a more flexible layout through the 7 reusable PCI-E slots for vertical GPU installation.
REMARKABLE COMPATIBILITY
Dual CPU Motherboard Support
Supports dual CPU motherboards with a width of up to 330mm, reflecting the upgrade and evolution of compatibility.

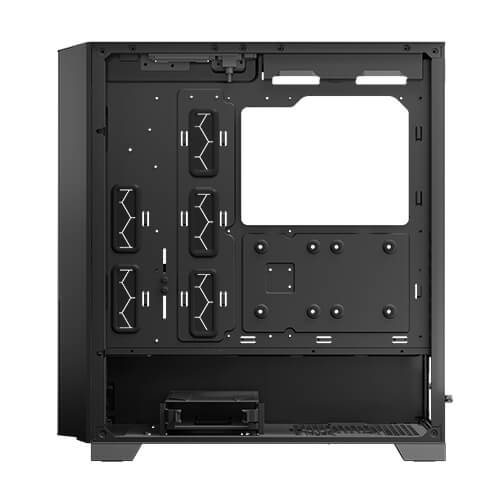

CABLE MANAGEMENT
Building a Clean PC
Is Within Easy Reach
Well-designed cable routing makes wiring easy and simple. The cable channels with a cutout on top for stable routing.
DETAILED FEATURES
Thoughtful Designs
COOLING COMPATIBILITY
9 Fans Simultaneously
3 x 120mm fans and a 360mm radiator can be installed inside the interior at the front. Plus 3 x 120mm fans outside the interior for outstanding cooling. Supports up to 9 x 120mm fans & 360mm radiators at the front and top simultaneously.
STORAGE COMPATIBILITY
Easy Installation
Fits up to 4 drive devices. 2 HDD & SSD compatible hard drive bays; 2 SSD hard drive bays.
  • Snap-in 2.5" drive device for easy mounting.
  • Removable hard drive cage.
  • Tool-free 3.5" drive tray.
CASE COMPATIBILITY
Unlimited upgrades
SPECIFICATIONS
Case Specification
Dimensions 469 x 220 x 490mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support E-ATX, ATX, Micro-ATX, ITX
Front Access & Controls Power, Reset , USB 3.0 x 2, Type-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1

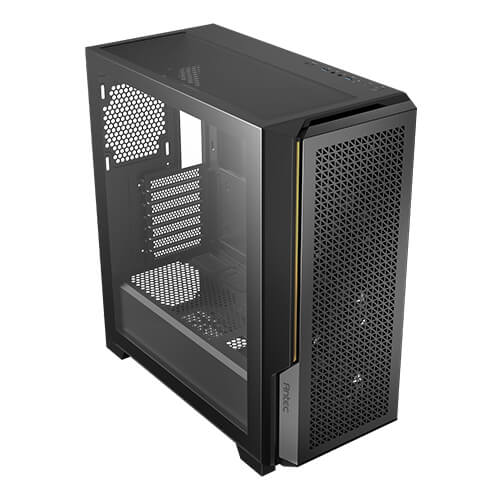

Side Panel 4 MM Tempered Glass Side Panel
Drive Bays
Expansion Slots 7
3.5" / 2.5" 2 / 2
2.5" 2
Fan
Front 3 x 120mm / 3 X 140mm / 2 x 185mm
Top 3 x 120mm / 2 x 140mm
Power Supply Shroud 2 x 120mm
Rear 1 x 120mm
Included Fan(s) Pre-installed 3 x 120mm PWM fans in front (P20C)
3 x 120mm PWM fans in front & 2 x 120mm PWM fans on PSU shroud & 1 x 120mm PWM fan in rear (P20C Elite)
Radiator Support
Front 120 / 140 / 240 / 280 / 360mm
Top 120 / 140 / 240 / 280 / 360mm
Rear 120mm
Clearance
Max GPU Length ≤ 375mm
Max CPU Cooler Height ≤ 170mm
Max PSU Length (Include cable) ≤ 205mm(with HDD)
(Include cable) ≤ 410mm(without HDD)
Miscellaneous
Dust Filter Front / Top / Bottom
Net Weight 8.1 Kg(P20C) / 8.3 Kg(P20C Elite)
Gross Weight 9.32 Kg(P20C) / 9.52 Kg(P20C Elite)
Warranty 2 Years
UPC# 0-761345-80103-4 (P20C)
0-761345-80105-8 (P20C Elite)
