FLUX PRO WHITE
Full Tower Case
Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.
FLUX Platform Patent Number: 11259440

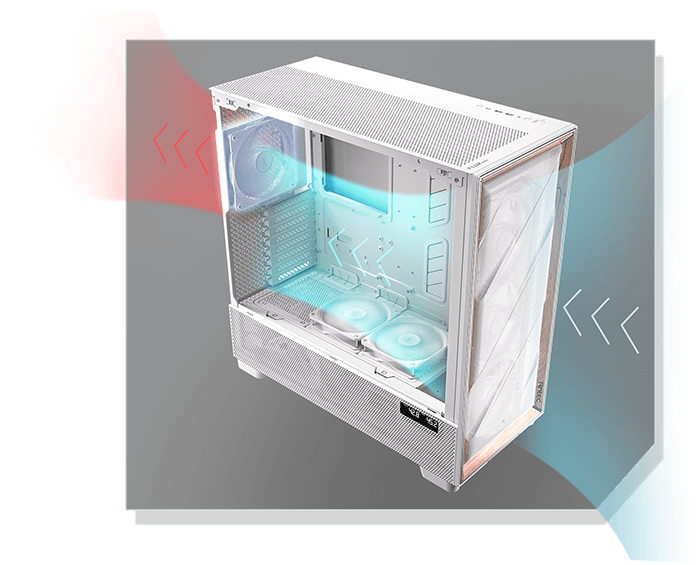

Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.
Multi-Directional Vent Design
Pre-Installed
6 x High-Performance
PWM FANs
6 x High-Performance
PWM FANs
With built-in ARGB &
PWM fan control hub in sync with M/B
PWM fan control hub in sync with M/B
Flux Vertical
Cooling
Cooling
Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.
Flux Horizontal
Cooling
Cooling
Air intake via the front mesh provides smooth venting channel throughout the case.

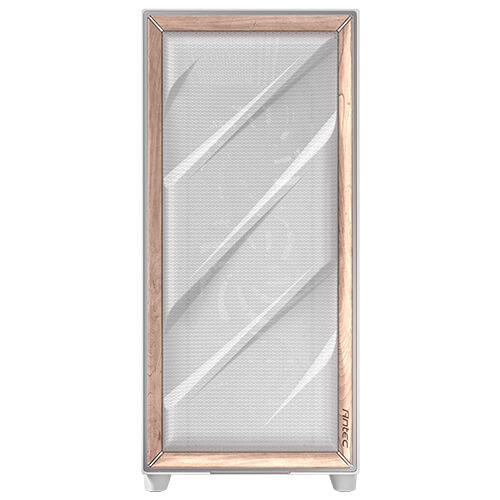

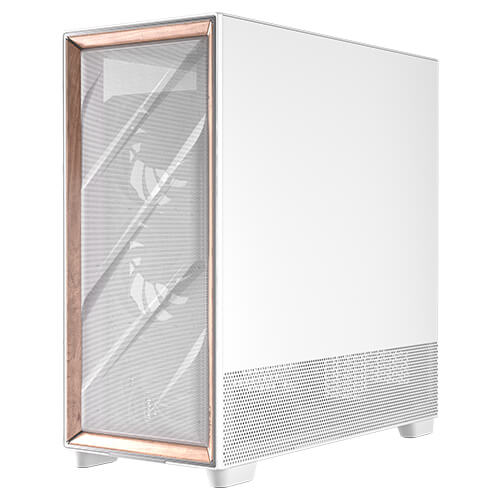

Premium Wood
Front panel is crafted with a combination of metal mesh and wood (birch) to create a high-quality texture with different materials, integrating seamlessly into your home design.
Innovative iShift PSU 90° Mount
In addition to the standard PSU mount orientation,a 90-degree rotated option powered by the included extension cable is available. Plug in the cable connector from the right side, routing has never been easier.
Support 180mm long PSU.
Reorienting the power supply enlarges the air intake at the bottom.
PSU Installation
Left side of PSU chamber is detachable, making it easy to install the power supply.
PSU Side Mount Guide
Compatible with various power interface layouts:

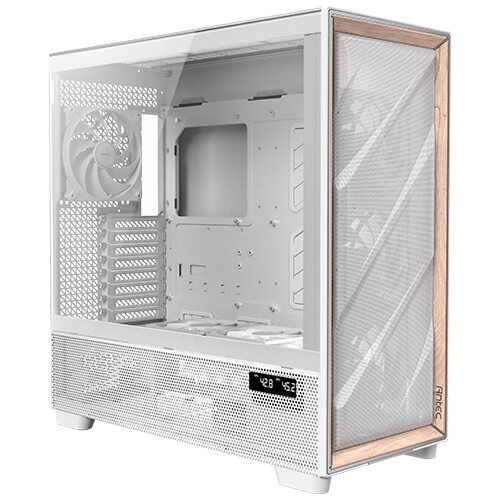

CPU/GPU Dual Temperature Display
Intuitive hardware temperature display design with 4 different modes:
- GPU & CPU On
- GPU & CPU Off
- Only CPU On
- Only GPU On
ANTEC IUNITY
The Antec iUnity provides instant data on PC specs, loads, and usage.
Download

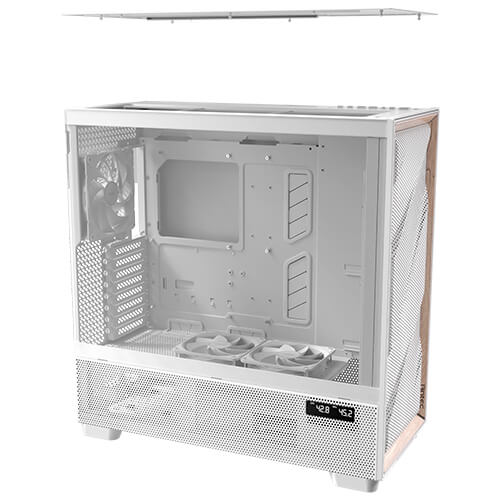

Removable Top Cooling Bracket
Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.
Removable Cooling Bracket on Top of PSU Shroud
When fans (2 available) are installed on the case bottom,remove the top shroud bracket to maximize the airflow,fulfilling the optimal vertical cooling scheme.
Removable Cooling Bracket on Top of PSU Shroud
Remove all three PSU shroud covers to install 3 x 120mm fans or a 360mm push-pull radiator.
Removable Front Cooling Bracket
- Vertically adjustable to 5 positions to fit the huge top AIO.
- Full cut-out design for enhanced air intake.
- Can install fans or radiators.
Recommended Water Cooling Configuration
Fan & Radiator Support
Can only accommodate Top 420mm + Front 360mm radiator, or Front 420mm + Top 360mm radiator at the same time.
Support Vertical GPU
Mount With Vertical Bracket
Mount With Vertical Bracket
Fully-open PCI slot covers can be removed to install the graphics card vertically.
Tool-Free Panel Design

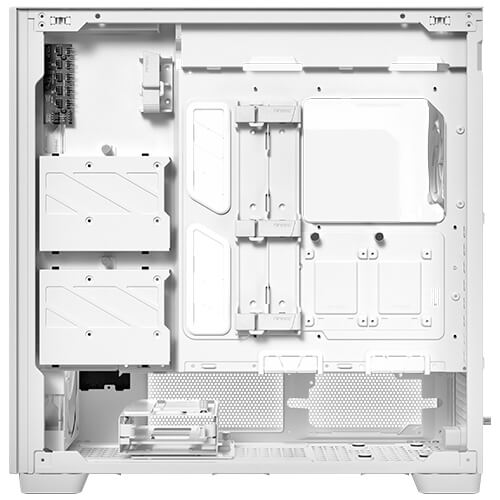

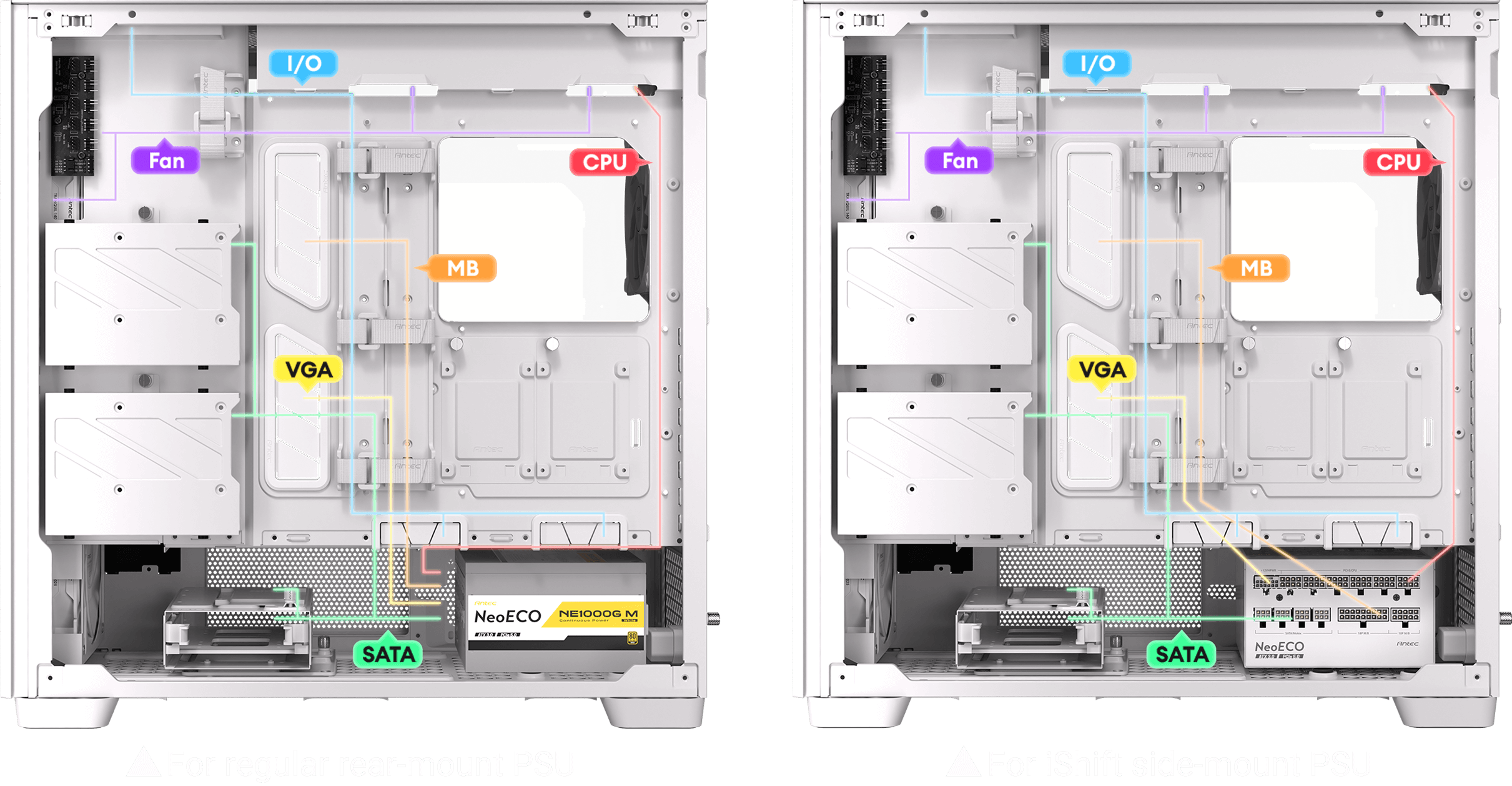

Optimal Cable Routing Experience
Cable Management
- ACable tie x 3
- BVelcro strap X 3
- CVelcro strap X 2
Modular Hard
Drive Cage
Drive Cage

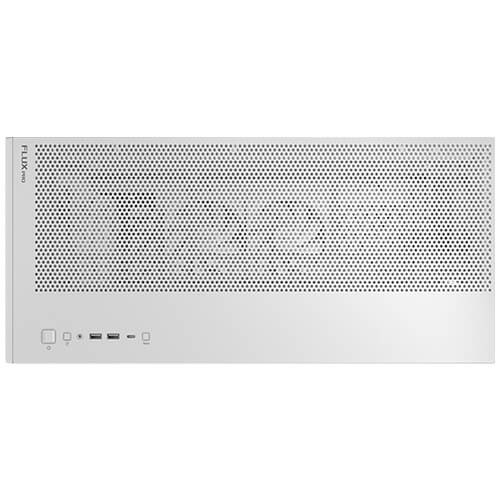

I/O Panel
Dust plugs included.

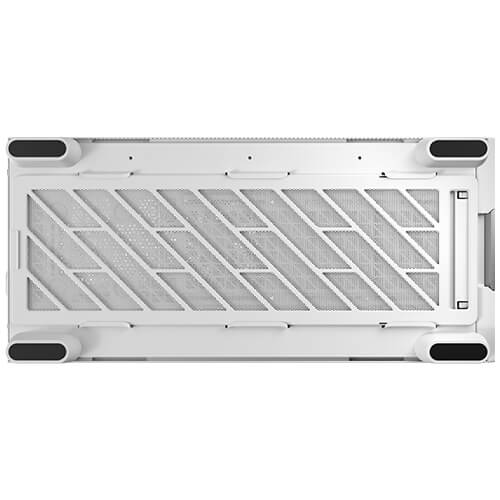

Bottom full-size pull-out dust filter
For easy cleaning and strong dust prevention.
Extensive Interior
- Motherboard support E-ATX(≤285mm), ATX, Micro-ATX, ITX
- CPU cooler max height ≤ 190mm
- GPU max length ≤ 455mm
-
-
Power Supply max length
(Include cable) ≤ 180/300mm (with HDD)
(Include cable) ≤ 470mm (without HDD)
(Not Include cable) ≤ 180mm (side mount)
-
Power Supply max length
(Include cable) ≤ 180/300mm (with HDD)
- 3.5" / 2.5" 4 / 4
- 2.5" 2
SPECIFICATIONS
| main spec | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| Drive Bays | ||||||||||||
|
||||||||||||
| Fan Support | ||||||||||||
|
||||||||||||
| Radiator Support | ||||||||||||
|
||||||||||||
| Clearance | ||||||||||||
|
||||||||||||
| Miscellaneous | ||||||||||||
|
||||||||||||
