FLUX
Mid Tower Case
Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 5 fans included, delivering enhanced GPU cooling performance.
FLUX Platform Patent Number: 11259440
Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.
Multi-Directional Vent Design
Pre-Installed Fans 5 x High-Performance PWM Fans
With built-in ARGB & PWM fan control hub in sync with M/B
Flux Vertical Cooling
Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.
Flux Horizontal Cooling
Air intake via the front mesh provide smooth venting channel throughout the case.
Premium Wood Material

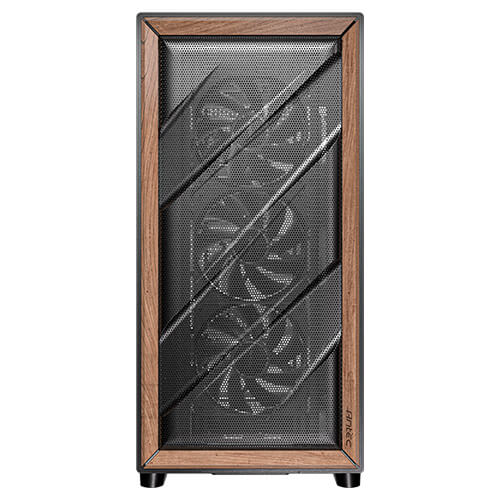

Front panel is crafted with a combination of metal mesh and wood (walnut) to create a high-quality texture with different materials, integrating seamlessly into your home design.
Optimized Chassis Design
Front is recessed, fostering better airflow and reducing wind noise.
Removable Top Cooling Bracket
Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.
Recommended Water Cooling
Supports simultaneous installation of Front 360mm radiator + Top 360mm radiator.
Extreme Water Cooling
Supports simultaneous installation of Front 420mm push-pull radiator + Top 280mm radiator.
Fan & Radiator Support
Support Vertical GPU Mount With Vertical Bracket
Fully-open PCI slot covers can be removed to install the graphics card vertically.
Support Back-Connect Motherboards
Plug in cables from behind to give front a cleaner look and a smoother airflow channel.
Tool-Free Panel Design
Cable Management
  • ACable tie x 3
  • BVelcro strap x 5
I/O Panel
Dust plugs included.
Bottom full-size pull-out dust filter
For easy cleaning and strong dust prevention.
Extensive Interior
  • Motherboard support E-ATX ( ≤ 330mm), ATX, Micro-ATX, ITX
  • CPU cooler max height ≤ 180mm
  • GPU max length ≤ 408mm
  • Power Supply max length (include cable)≤ 235mm(with HDD)
  • 3.5" / 2.5" 2 / 2
  • 2.5" 1
SPECIFICATIONS
main spec
Dimensions 484 x 239 x 502 mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic + Wood
Mainboard Support E-ATX (≤330mm), ATX, Micro-ATX, ITX
Front Access & Controls Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack
Side Panel 4mm Tempered Glass
Drive Bays
Expansion Slots 7
3.5" /2.5"  2/2
2.5" 1
Fan Support
Front  3 x 120mm / 3 x 140mm
Top 3 x 120mm / 2 x 140mm
Power Supply Shroud 2 x 120mm / 2 x 140mm
Rear 1 x 120mm / 1 x 140mm
Included Fan(s) 3 x 120mm PWM fans in front + 1 x 120mm PWM Reverse fan on PSU shroud + 1 x 140mm PWM fan in rear
Radiator Support
Front 120 / 140 / 240 / 280 / 360 / 420mm
Top 120 / 140 / 240 / 280 / 360mm
Rear 120 / 140mm
Clearance
Max GPU Length ≤408mm
Max CPU Cooler Height ≤180mm
Max PSU Length (Include cable) ≤235mm (with HDD)
Miscellaneous
Dust Filter   Bottom
Net Weight 9.27Kg
Gross Weight 10.64Kg
Warranty  2 Years
UPC# 0-761345-10133-2
