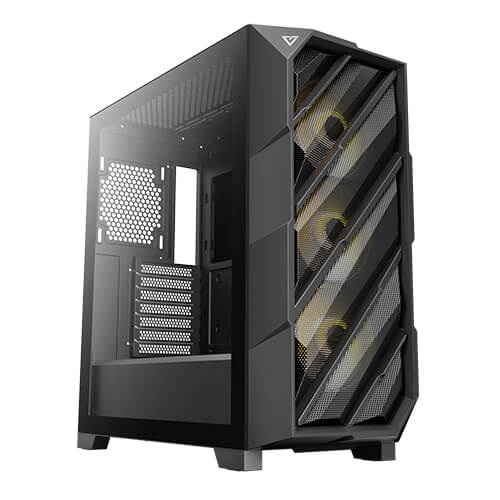

DP503
Mid-Tower E-ATX Gaming CaseOutstanding Compatible Performance
UNLIMITED CONFIGURATION OPTIONS
Maximum Expansion Potential

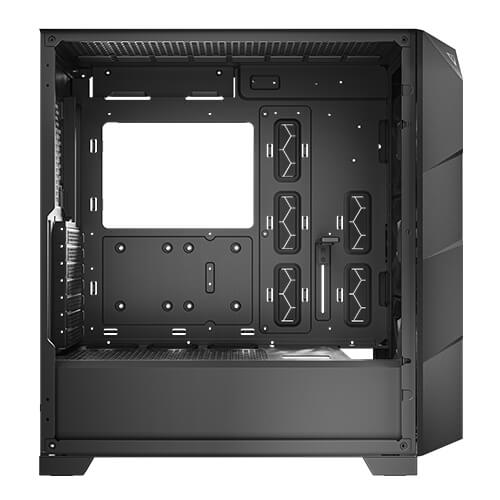

The DP503 gaming case features an extensive interior and powerful compatibility. 2 x 360mm can be installed in the front & on the top simultaneously.
MASSIVE MESH
HIGH-AIRFLOW

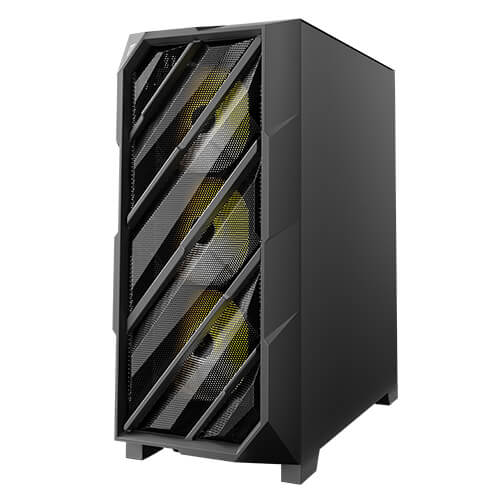

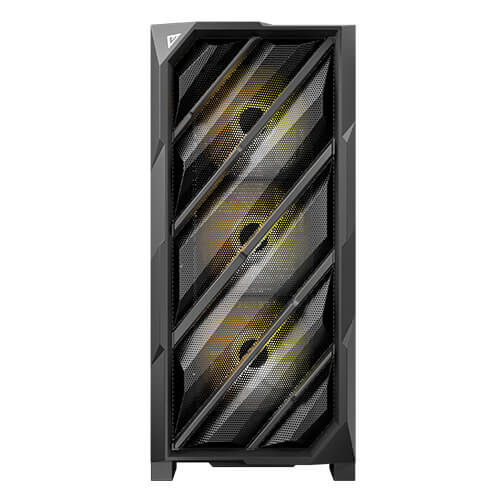

Mesh Front Panel
Comes with a mesh front panel, along with ventilation on the top, at the bottom and in the PSU chamber, which will accelerate the airflow circulation and enhance the cooling performance.

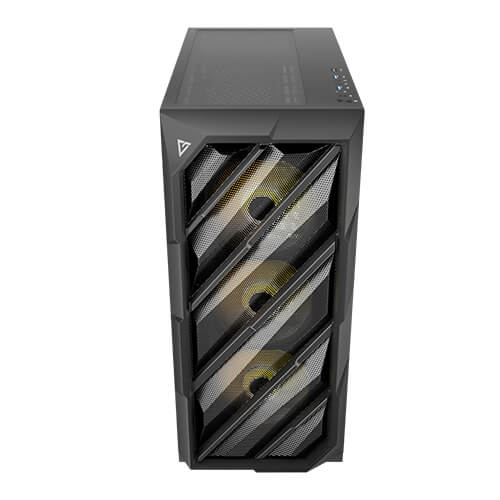

  • Massive Mesh Front Panel with Slanted Bar Design.

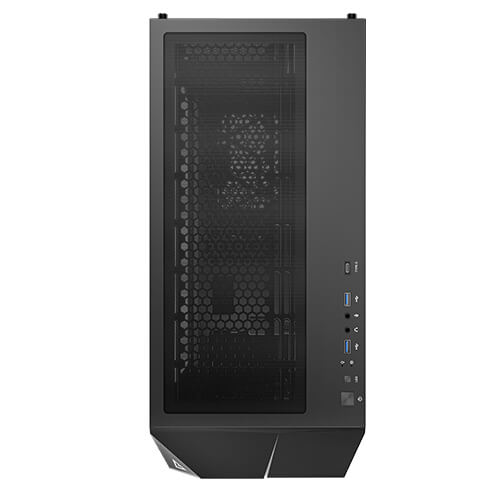

  • The Magnetic Dust Filter on the Top.

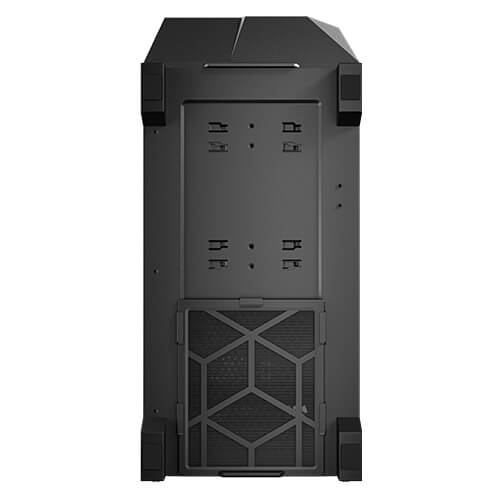

  • Pull-Out Dust Filter at the Bottom.
Three addressable RGB fans Included
Pre-installed at the front for efficient airflow and customizable RGB lighting.
BUILT-IN DEVICES
ARGB & PWM
CONTROL HUB
The control hub supports up to 6 fans and 6 LED device.
Connect it to your motherboard for 16.8 million possible colors.

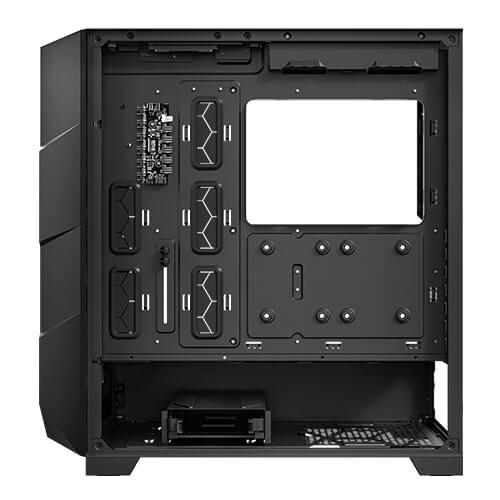

CABLE MANAGEMENT
Building a clean PC is
Within easy Reach

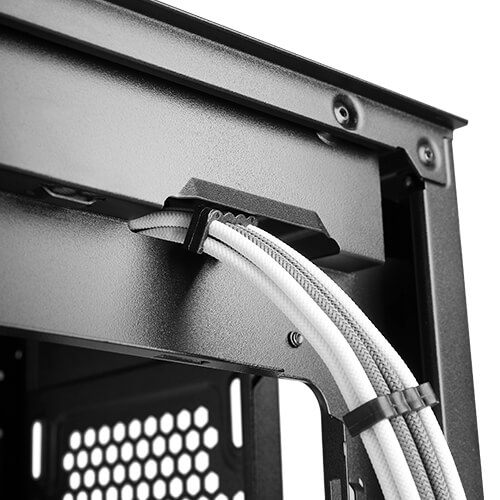

Well-designed cable routing makes wiring easy and simple, with a spacious 23mm of space for cables.

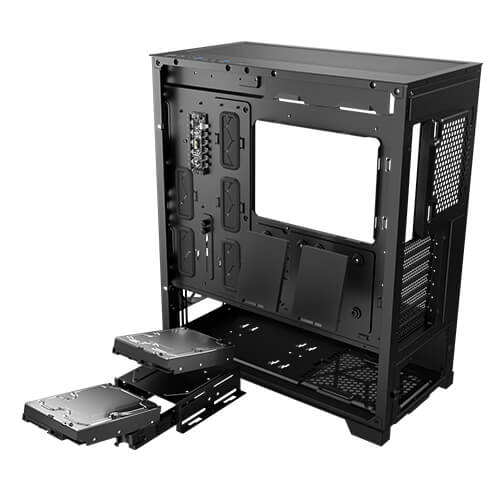

DRIVE BAYS COMPATIBILITY
Easy installation
Fits Up To 4 Drive Devices
  • Snap-in 2.5" drive device for easy mounting.

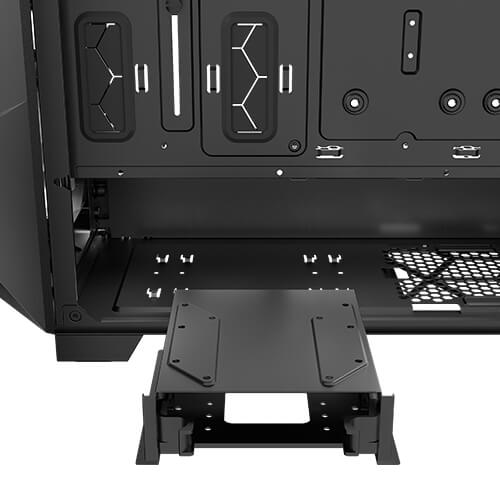

  • Removable hard drive cage.
  • Tool-free 3.5" drive tray
HIGH-SPEED TRANSFER
TYPE-C 3.2 GEN 2 READY
THOUGHTFUL DESIGN
Detailed Features
COOLING COMPATIBILITY
9 fans simultaneously
3 x 120mm ARGB fans and a 360 mm radiator can be installed
simultaneously in the front interior for better cooling performance.
CASE COMPATIBILITY
Unlimited upgrades
SPECIFICATIONS
Fan
Dimensions 483 x 220 x 492 mm (DWH)
Form Factor Mid Tower
Materials Steel, Plastic
Mainboard Support E-ATX, ATX, Micro-ATX, ITX
Front Access & Controls Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1
Side Panel 4mm Tempered Glass
Drive Bays
Expansion Slots 7
3.5" / 2.5" 2 / 2
2.5" 2
Fan
Front 120mm x 3 / 140mm x 3 / 185mm x 2
Top 120mm x 3 / 140mm x 2
Power Supply Shroud 120mm x 2
Rear 120mm x 1
Included Fan(s) 120mm ARGB fans in front x 3
Radiator Support
Front 120 / 140 / 240 / 280 / 360mm
Top 120 / 140 / 240 / 280 / 360mm
Rear 120mm
Clearance
Max GPU Length ≤ 375mm
Max CPU Cooler Height ≤ 170mm

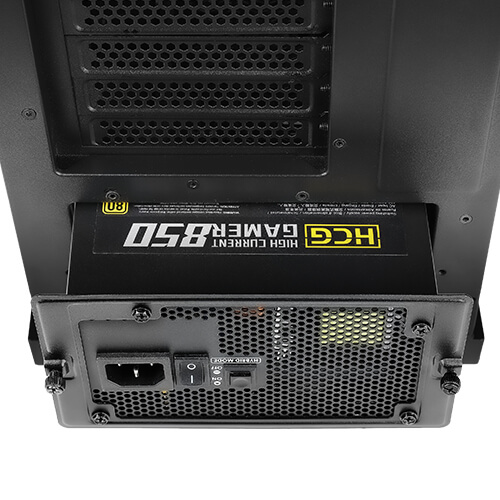

Max PSU Length ≤ 205mm(with HDD)
≤ 410mm(without HDD)
Cable Routing Space ≤ 23mm
Accessories
Fan & LED Control Hub Yes

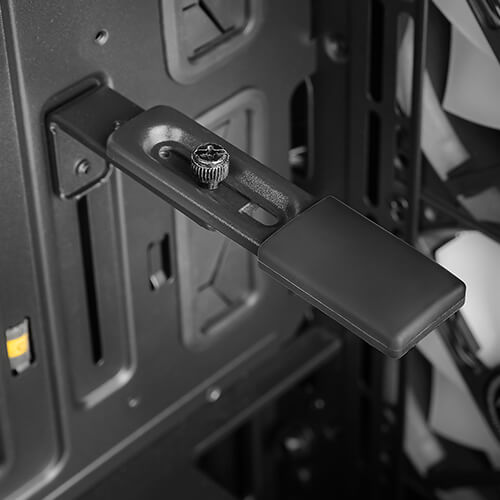

GPU Holder Yes
Cable Routing Grommets Yes, 8 pcs
Fixed Cable Ties Yes, 3 pcs

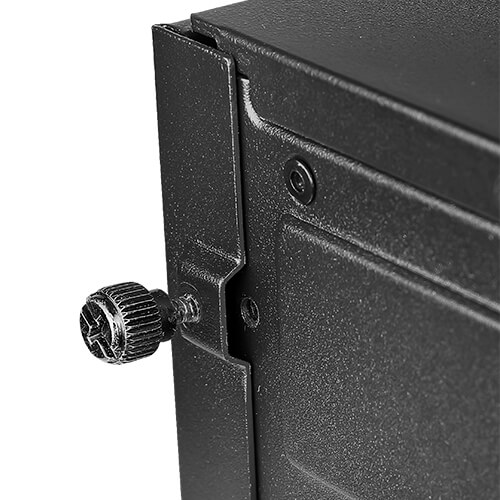

Captive Thumb Screws Yes (Side panels, GPU Holder, PSU Brace)
Miscellaneous
Dust Filter Top / Bottom
Net Weight 7.88kg
Gross Weight 9.11kg
Warranty 2 Year
UPC# 0-761345-81077-7
