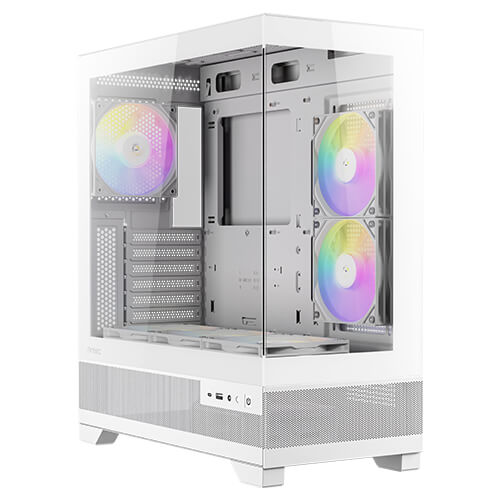

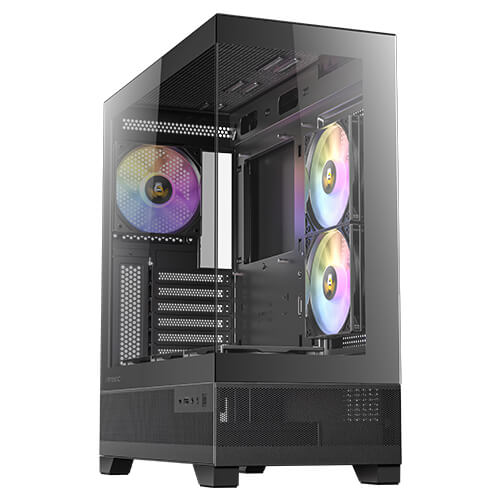

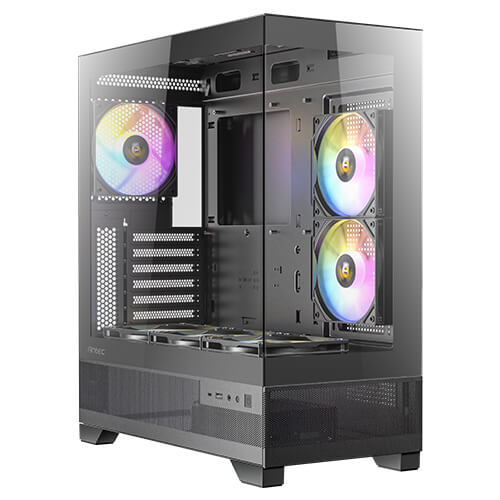

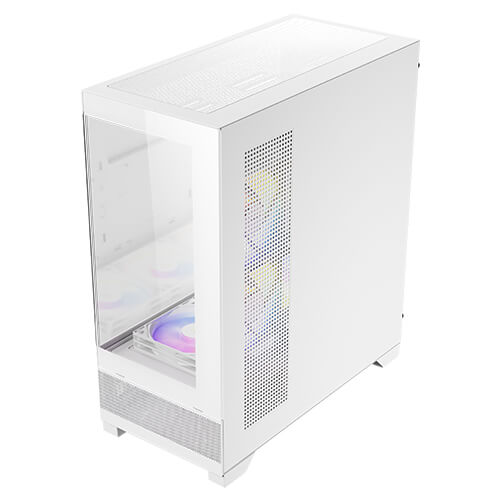

CX700 RGB ELITE / CX700 RGB ELITE WHITE
Mid-Tower Gaming Case
CX700 ARGB (Pre-installed 2 x 120mm ARGB PWM reverse fans on right side & 1 x 120mm ARGB PWM fan in rear)
Panoramic 270° View

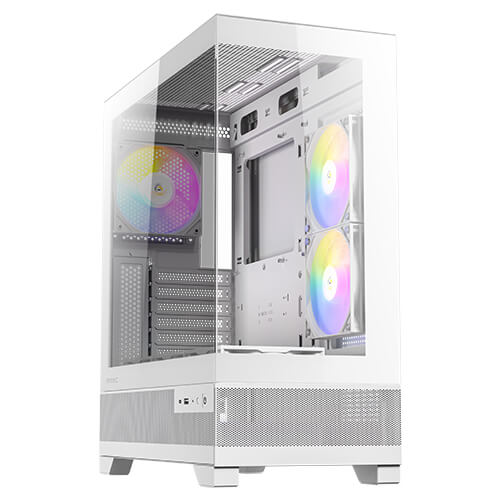

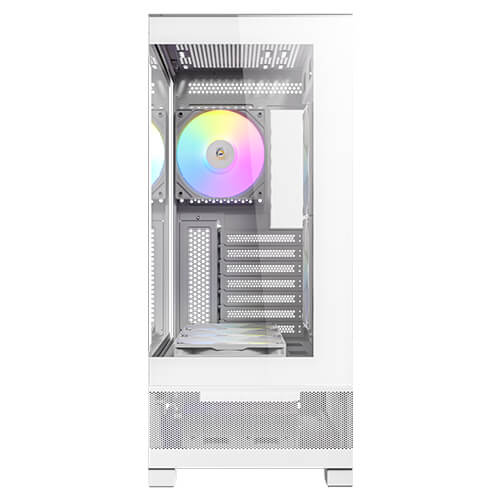

Standing out with full-view design on the seamless 4mm steel-tempered glass, CX700 RGB ELITE's left and front panel offer an unobstructed view of your build, creating a stunning showcase for your components.
Tool-Free Panels
Front and side panel adopt fixing stud design, which makes assembly and disassembly easier and helps avoid possible glass breakage.
Vertical Cooling with Massive Air Intake

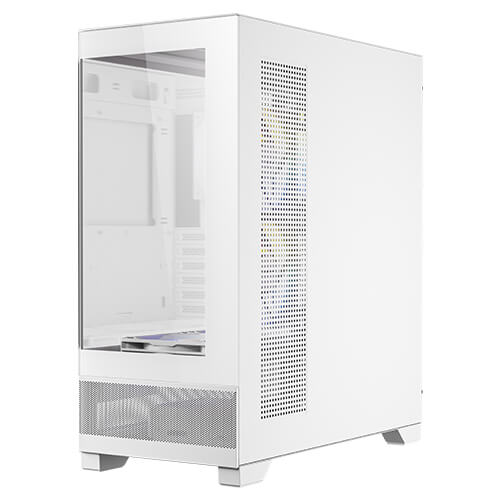

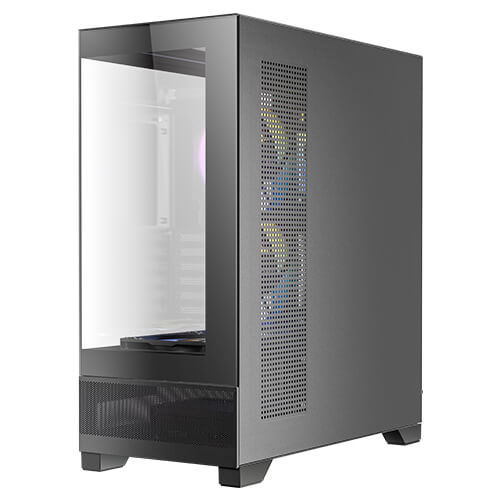

Bottom-up vertical airflow via mesh on lower front, lower left, and right side accelerates the heat dissipation.
Display with
RGB Fans

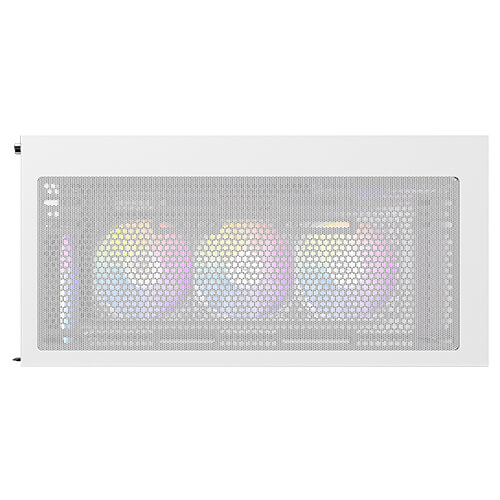

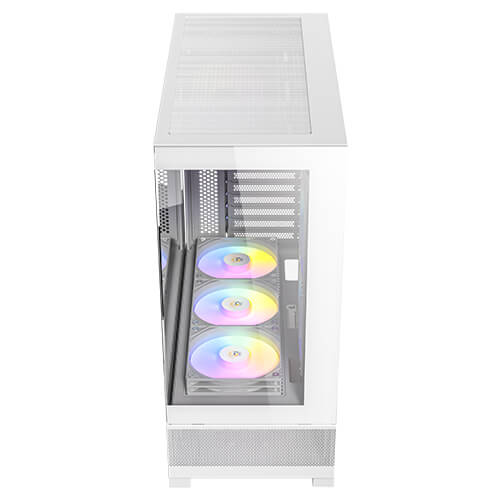

9 fan positions with 5 pre-installed reverse fans provide great airflow and aesthetic appeal.
Pre-Installed 6 x 120mm Fixed Mode RGB Fans
Daisy-chained to PSU.
Support
2 x Water Cooler

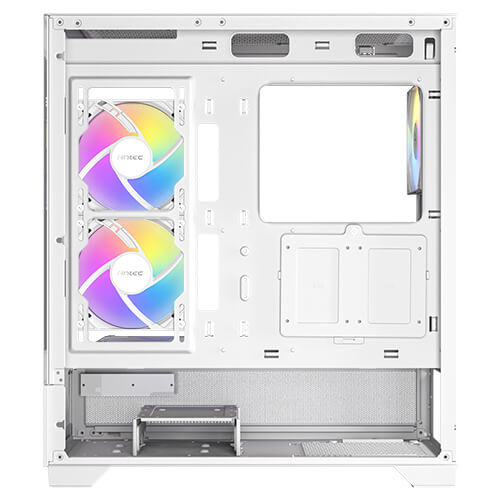

Support simultaneous installation of 360mm radiator on top and 240mm radiator on side.

When installing a 240mm radiator on the side, the length of the graphics card is limited to 270mm.
EVA PSU
Cushion Pads
With EVA anti-vibration foams on the power supply mount position, your lovely PC hardware is well protected against any jar or resonance caused by PSU operation.
Full Reusable PCI Slot Covers
Reusable PCI slot covers fulfill an optimal build experience.
I/O Panel
Up to 9 Fans Simultaneously
When installing a 240mm radiator on the side, the length of the graphics card is limited to 270mm.
Powerful Air Cooling Compatibility
Max. CPU Cooler Height: 160mm
Compatibility
  • Motherboard support ATX, Micro-ATX, ITX
  • CPU cooler max height ≤ 160mm
  • GPU max length ≤ 410mm
    ≤ 270mm (When water cooling
    is installed on the side)
  • 2.5" 2
  • 3.5” / 2.5” Drive Mounts 2 / 1
  • Power Supply max length ≤ 210mm (With HDD cage) (Include cable)
    ≤ 270mm (Without HDD cage) (Not include cable)
  • 2.5" 1
  • 3.5” / 2.5” Drive Mounts 2 / 1
  • Power Supply max length ≤ 210mm (With HDD cage) (Include cable)
    ≤ 270mm (Without HDD cage) (Not include cable)
Support Lengthy RTX 40 Series GPU
Max GPU Length:
410mm /
270mm (When water cooling installed on the side)
More Space
Than You Think
Still plenty of room for heat dissipation between the thick RTX 40 graphics card and PSU shroud fans.
Ample Cable
Management Space
23mm of cable management space enusres your PC build looks neat.
Dimensions
436 x 210 x 486mm (DWH)
SPECIFICATIONS
Dimensions 436 x 210 x 486mm(DWH)
Form Factor Mid Tower
Materials Steel + Glass
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls Power, LED On/Off button (CX700 RGB ELITE) or LED Control Button(CX700 ARGB), USB 3.0 x 1, Type-C 3.2 Gen 2 x 1, Headphone/Mic Combo Jack
Side Panel 4mm Tempered Glass
Drive Bays
Expansion Slots 7
3.5" /2.5" 2/1
2.5" 2
Fan
Top 3 x 120 / 2 x 140mm
Side 2 x 120mm
Power Supply Shroud 3 x 120mm
Rear 120mm
Included Fan(s) 3 x 120mm fixed mode RGB reverse fans on PSU shroud +
2 x 120mm fixed mode RGB reverse fans on right side +
1 x 120mm fixed mode RGB fan in rear
Pre-installed 2 x 120mm ARGB PWM reverse fans on right side & 1 x 120mm ARGB PWM fan in rear (CX700 ARGB)
Radiator Support
Top 120 / 140 / 240 / 280 / 360mm
Side 120 / 240mm
Clearance
Max GPU Length ≤ 410mm
≤ 270mm (When water cooling is installed on the side)
Max CPU Cooler Height ≤ 160mm
Max PSU Length ≤ 210mm (With HDD cage) (Include cable)
≤ 270mm (Without HDD cage) (Not include cable)
Miscellaneous
Dust Filter Top / Bottom
Net Weight 7.10 kg (CX700 RGB Elite)
6.90 Kg (CX700 ARGB)
Gross Weight 8.40 kg (CX700 RGB Elite)
8.60 Kg (CX700 ARGB)
Warranty 1 Year
UPC# 0-761345-10043-4 CX700 RGB Elite
0-761345-10044-1 CX700 RGB Elite White
0-761345-10120-2 CX700 ARGB
0-761345-10132-5 CX700 ARGB White
