Build an Elite-Tier Dream PC System at Will

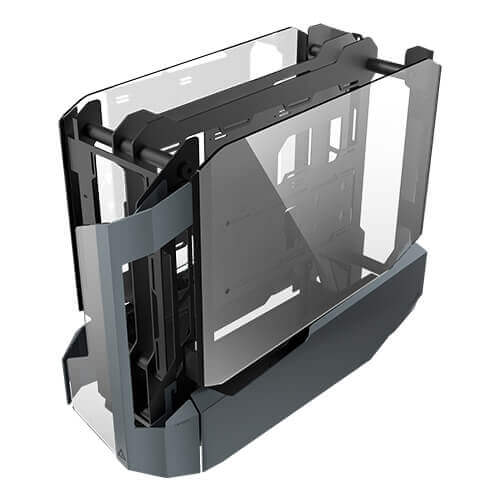

Combined with the technological aesthetics and unique case structure design, the Cannon is an aluminum alloy made open-air gaming case well equipped with high compatibility and layout for high-end PC components. The Cannon full-tower E-ATX gaming case will meet every PC-DIY user's need from styling, functions, and uniqueness.
The First of Its kind - Dual Set of Individual Liquid Cooling Systems
Dual sets of individual liquid cooling systems can be installed at the same time.
Provide high-standard cooling for GPU and CPU, preventing the effect of waste heat.

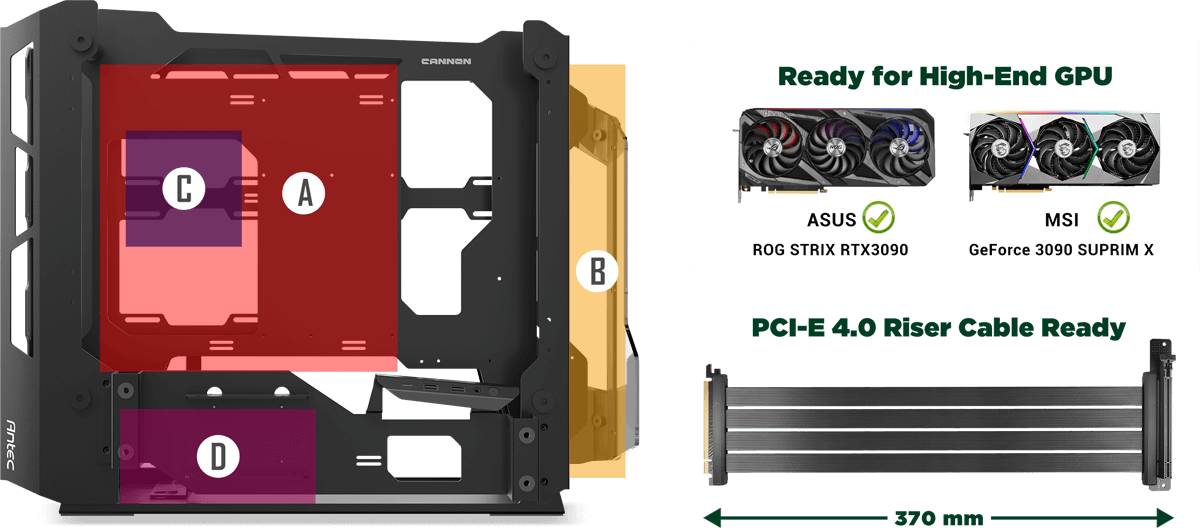

Incredible Layout

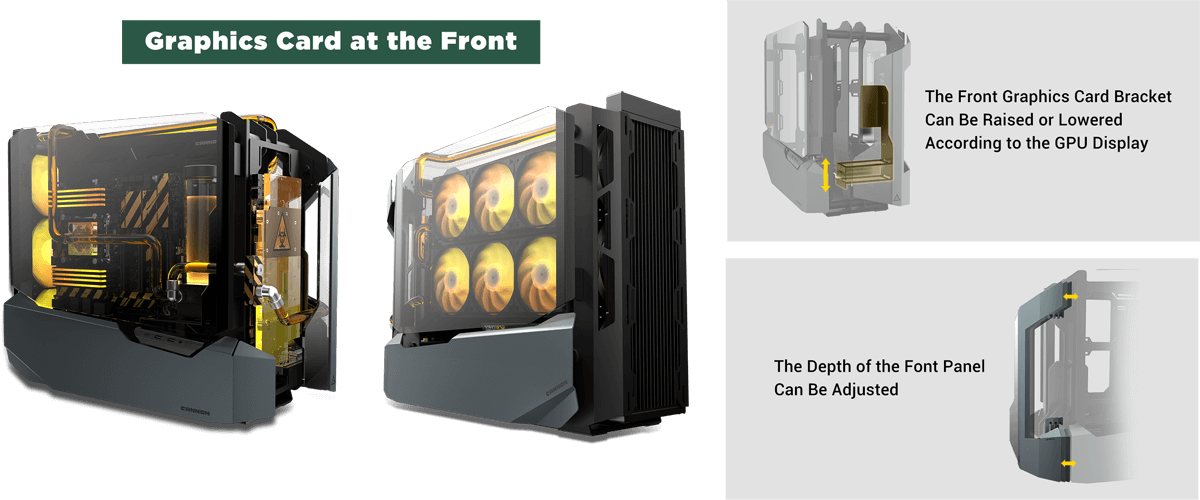

The diversified configurations provide many options for high-end PC-DIY users to enjoy their creativity. There are even two possible GPU mounts.

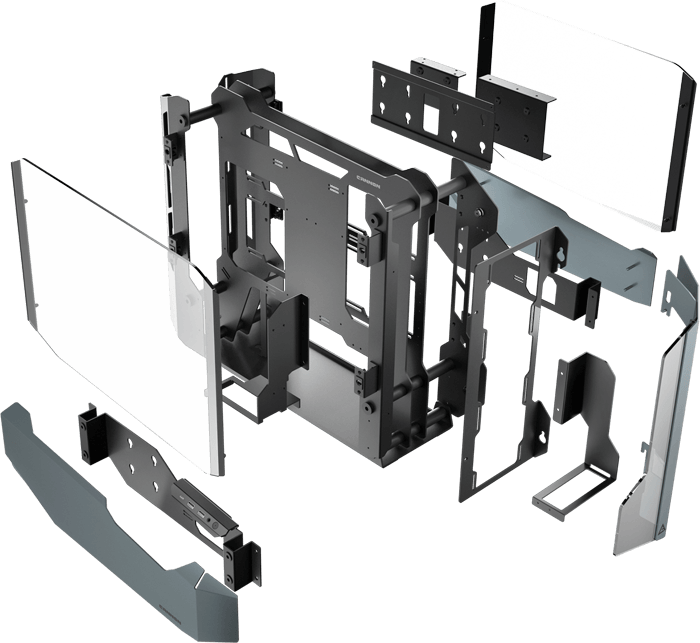

The One and Only
Aluminum alloy made and CNC cutting processed craftsmanship.
Maximum Cooling Potential
The Cannon supports up to 3 x 360 mm radiators simultaneously.

Four Potential Radiator Mounts (Three Radiators Can Be Installed Simultaneously)

• For advanced PC-DIY users, the maximum is four radiators.

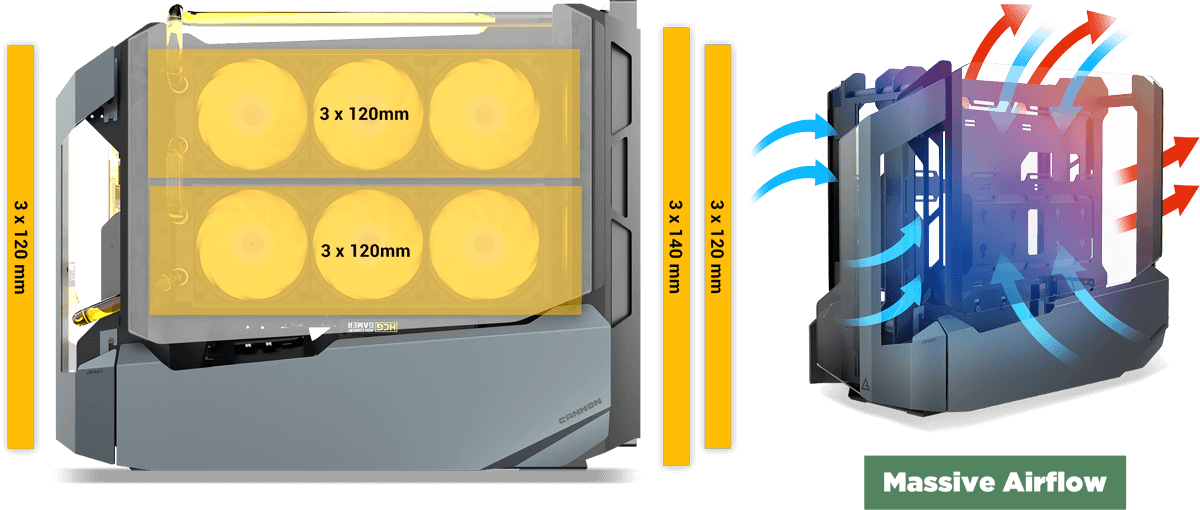

Fan Support
Supports up to 12 x 120 mm fans.

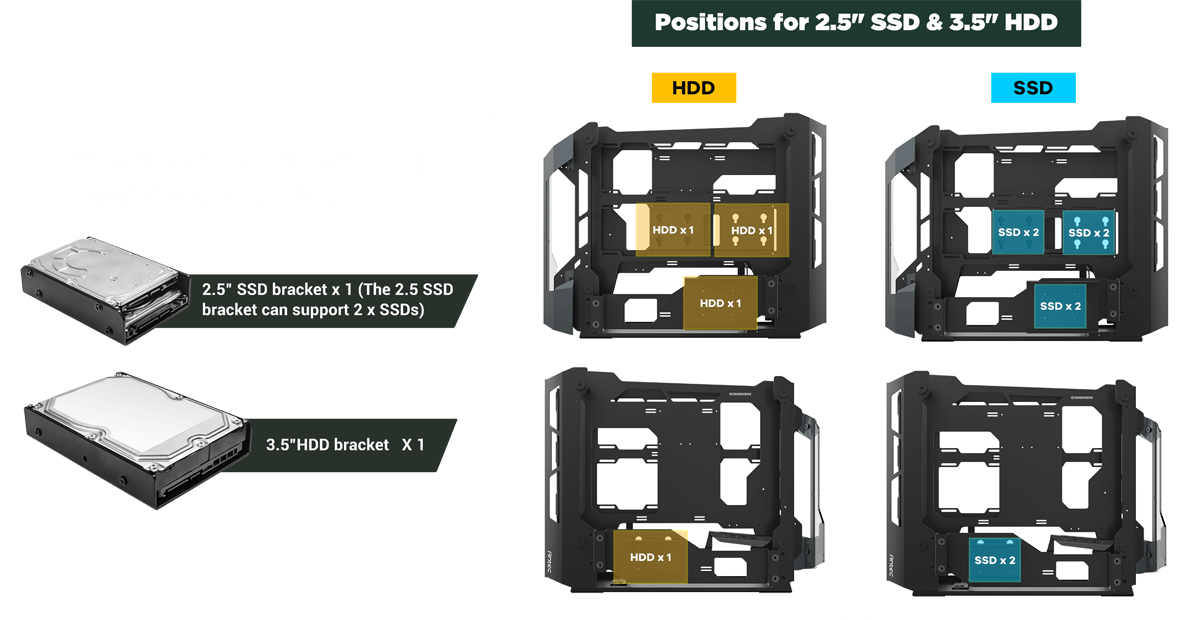

Highly Flexible Storage
There are four potential 2.5" SSD & 3.5" HDD mutual storage positions.
Motherboard Support: E-ATX(up to 305 mm x 272 mm), ATX, Micro-ATX, Mini-ITX
Max GPU Length: 385 mm
Max CPU Cooler Height: 85 mm
Max PSU Length: 270 mm

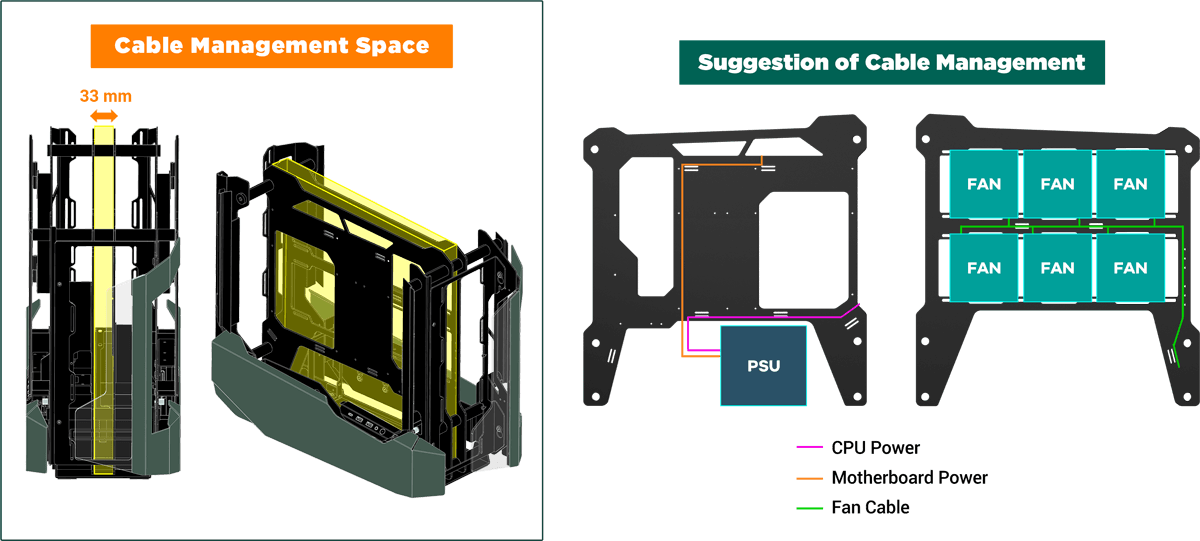

Keep It Simple
To create a tidy appearance, the space for cable management is well-designed in the center and bottom of the case. It reduces the difficulty of PC installation.
Case Specification
Dimensions 604 x 261 x 481 mm (DWH)
Form Factor Full Tower
Materials Aluminum + Plastic + Steel
Mainboard Support E-ATX(up to 305 mm x 272 mm), ATX, Micro-ATX, Mini-ITX

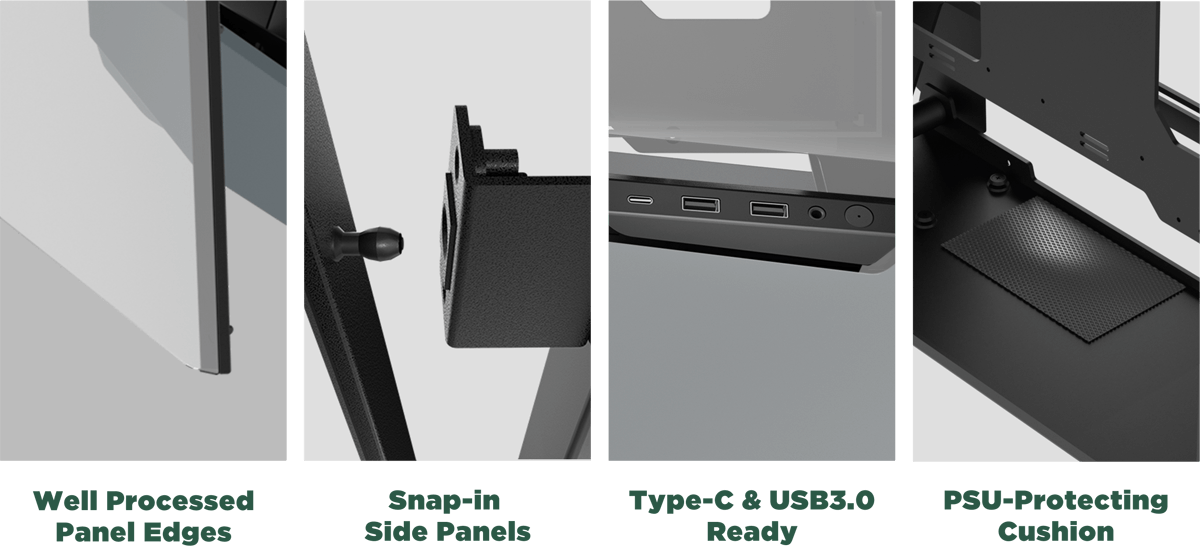

Front Access & Controls Power, USB 3.0 x 2, USB 3.1 Type-C x 1, Headphone / Mic Combo Jack
Side Panel 4mm Tempered Glass
Expansion & Drive Bays
3.5" 1
2.5" 2
Fan Support
Front 3 x 120mm
Side 6 x 120mm
Rear 3 x 120mm / 3 x 140mm

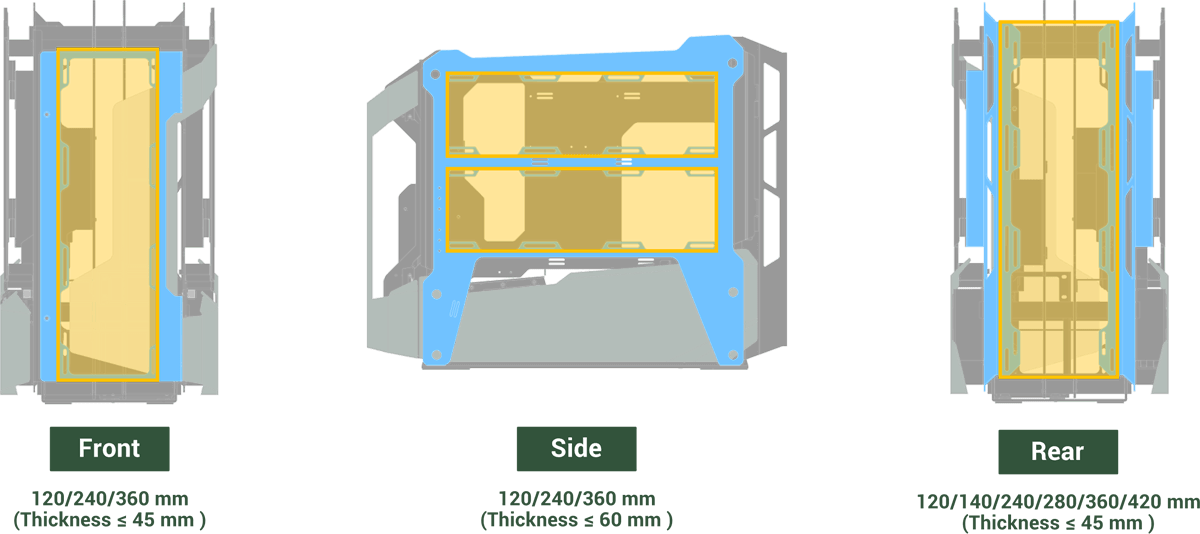

Radiator Support
Front 120 / 240 / 360mm
Side 120 / 240 / 360mm
(Support up to 2 x 360mm Radiators at the same time)
Rear 120 / 140 / 240 / 280 / 360 / 420mm
Max GPU Length 385mm
Max CPU Cooler Height 85mm
Max PSU Length 270mm
Net Weight 10 Kgs
Gross Weight 13.3 Kgs
PCI-E Riser Cable Included
Warranty 1 year
UPC# 0-761345-91400-0
Package Size 714 x 586 x 365MM
