C7 BLACK
CONSTELLATION SERIES
SCI-FI DESIGN WITH
PANORAMIC 270° VIEW
VERTICAL COOLING
Supports up to 10 fans, with large area of vents around lower chamber, allowing for bottom-to-top vertical airflow.
MULTI-DIRECTIONAL AIR INTAKE AND MASSIVE AIRFLOW

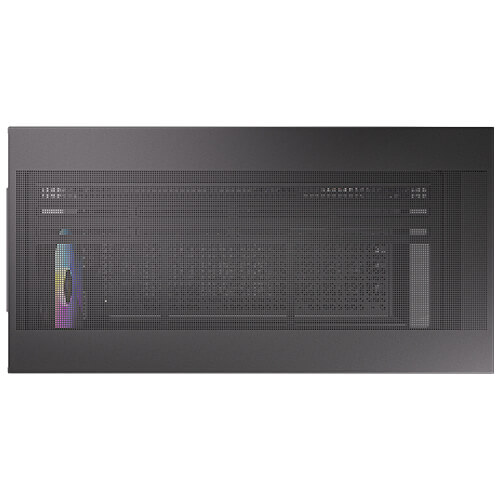

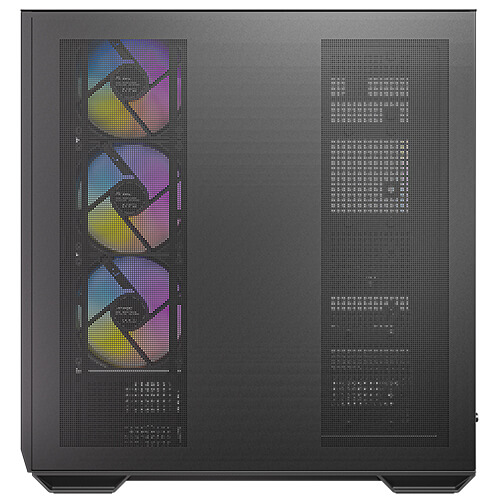

Fine mesh on the top and right panel, and a great number of vents on the front, left and bottom of lower chamber provide massive airflow.

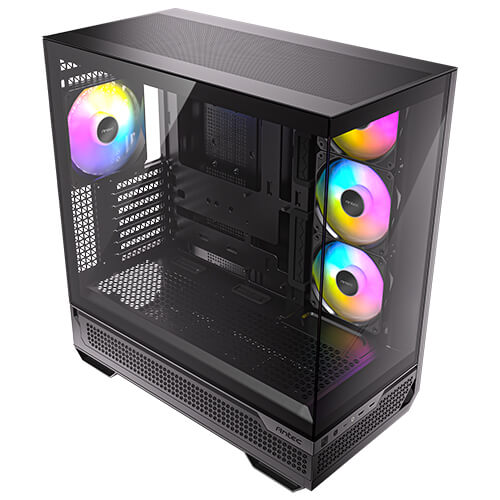

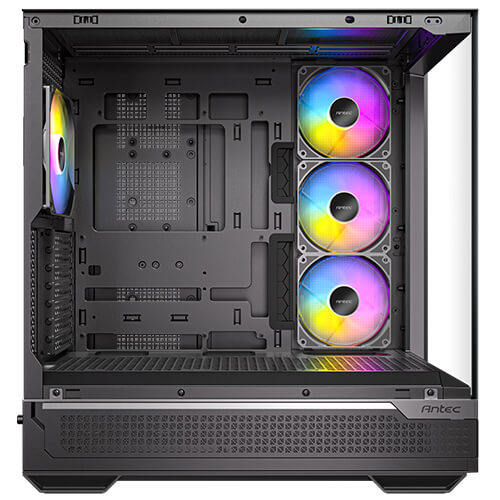

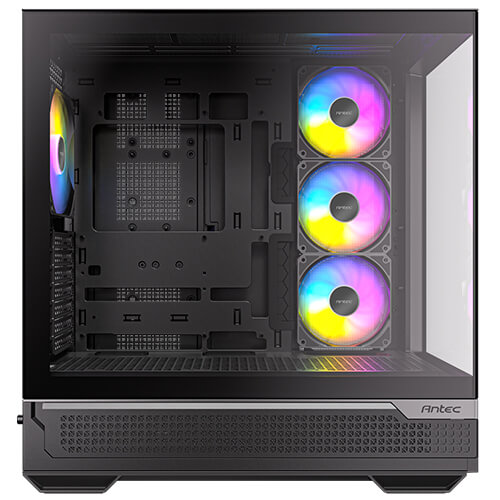

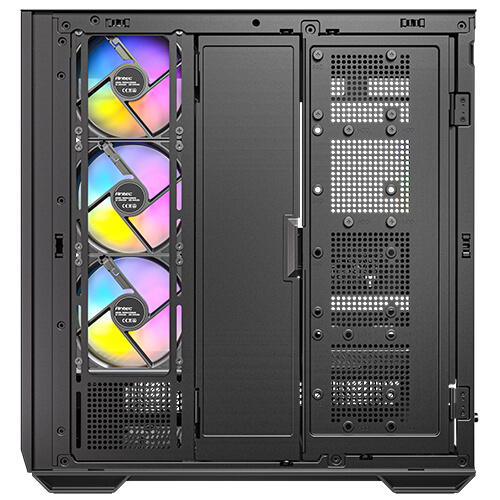

PRE-INSTALLED 3 X 120MM ARGB PWM REVERSE FANS & 1 X 140MM ARGB PWM FAN
2 X 360MM RADS
Supports simultaneous installation of 360mm radiators on the top and side.
Side Radiator Installation
Remove the small cover on the PSU shroud to install a side radiator. Overall thickness up to 70mm.
(*When installed a side radiator with more than 52mm thickness, GPU length is limited to 280mm.)
SUPPORT RTX 4090
No interference between side radiator with standard thickness (52mm) and RTX 4090.
ALL REUSABLE FULLY-OPEN
PCI SLOT COVERS

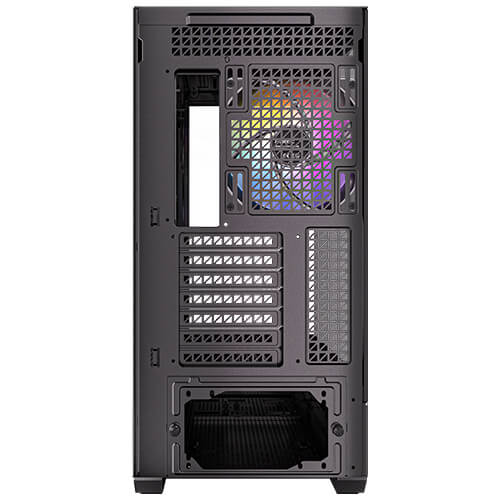

Configured with 7 reusable PCI slot covers, which can be turned 90* to mount the GPU vertically (additional riser cable needed).
Support Back-Connect Motherboards
Plug in cables from behind to give front a cleaner look and a smoother airflow channel.

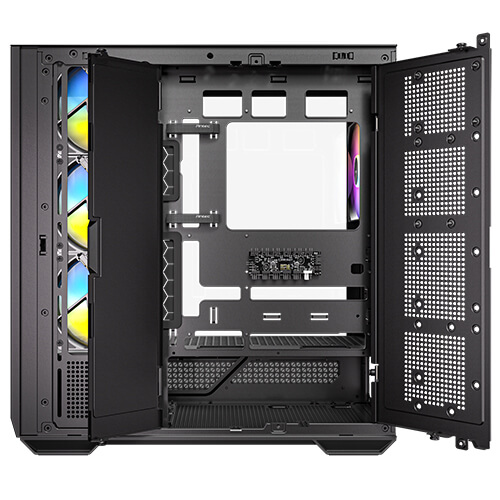

FLIP DOOR STORAGE
Right flip door supports up to 2 x 3.5" HDD /2.5" SSD and 2 x 2.5" SSD. The tray in the case bottom accommodates another 3.5" HDD/2.5" SSD.
MULTIPLE HARD DRIVES
Supports multiple hard drives, with different compatibility depending on the form factor of installed motherboard, 3 x 3.5" HDD or 5 x 2.5" SSD at most.
CABLE MANAGEMENT
Provides 2 Velcro straps on the back of motherboard to avoid cable clutter, and 2 Velcro straps at the rear for easier management of peripheral cables.
FLIP CABLE COVER
With a cable management space of 32mm and a removable flip-door cable cover, allowing for unobstructed cable management.

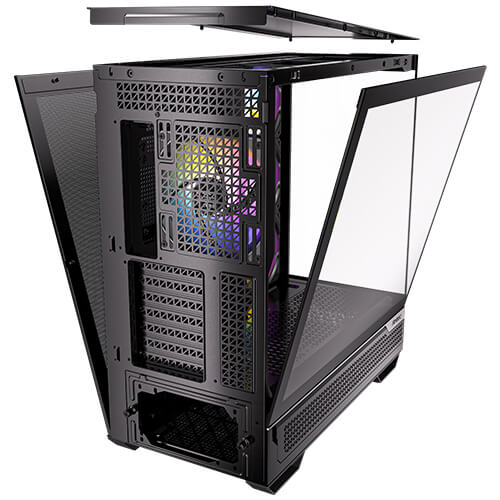

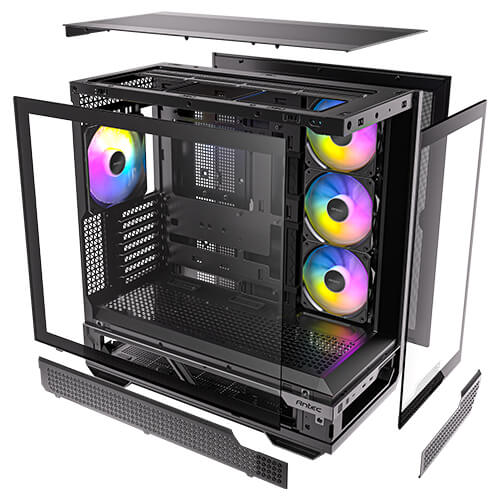

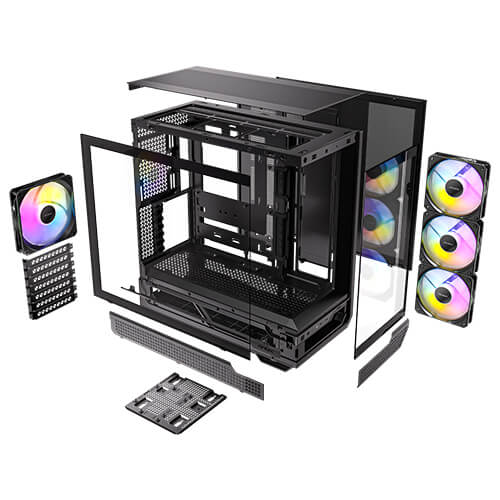

SCREW-FREE PANELS WITH CLIP HANDLES

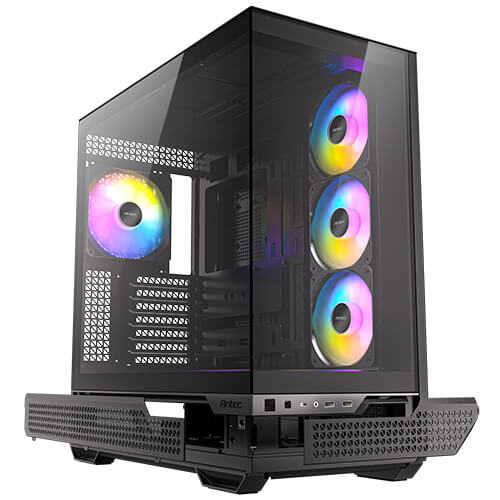

  • The lower front and lower left feature detachable mesh panels secured by hooks and magnets, with clip handle positions.
  • Front panel and both side panels are secured by studs and hooks, with clip handle positions at the rear.
  • Top panel is secured by studs.
DUST FILTER
  • Front: Magnetic filter
  • Left: Magnetic filter

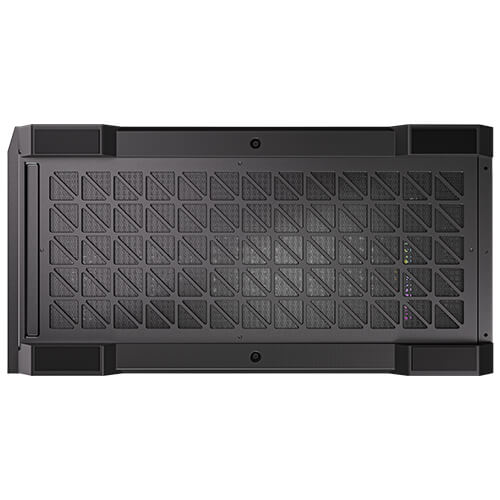

  • Bottom: Full-size pull-out filter
REAR PULL PSU MOUNT & EVA CUSHION PADS
For easier PSU installation and safer operation.

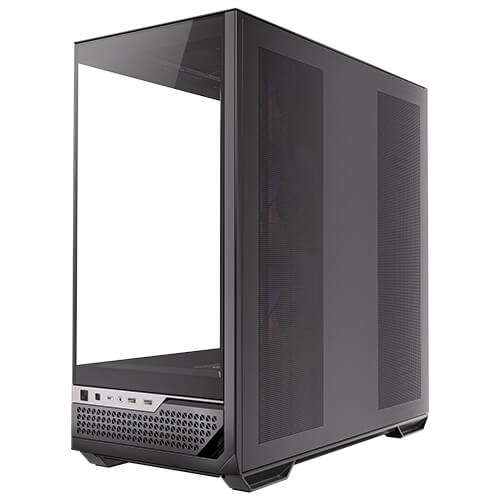

I/O PANEL
  • Power
  • LED Control Button
  • Type-C 10Gbps x 1
  • Headphone/Mic Combo Jack
  • USB 3.0 x2
COOLING COMPATIBILITY
Extensive Interior
  • Motherboard support E-ATX (≤ 272mm), ATX, M-ATX, ITX
  • CPU cooler max height ≤ 180mm
  • GPU max length ≤ 450mm
  • Power Supply max length (include cable)≤ 210mm
SPECIFICATIONS
main spec
Dimensions 485 x 241 x 504mm(DWH)
Form Factor Mid Tower
Materials Steel + Plastic + Glass
Mainboard Support E-ATX (≤ 272mm), ATX, M-ATX, ITX
Front Access & Controls Power, LED Control Button,  USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack
Side Panel 4mm Tempered Glass
Drive Bays
Expansion Slots 7
3.5" / 2.5"  Normal M/B: 3/3
M-ATX Back Connect: 3/3
ATX Back Connect: 2/2
2.5" Normal M/B: 2
M-ATX Back Connect: 1
ATX Back Connect: 1
Fan Support
Top 3 x 120 / 2 x 140mm
Side 3 x 120mm
Power Supply Shroud 3 x 120mm
Rear 1 x 120 / 1 x 140mm
Included Fan(s) 3 x 120mm ARGB PWM reverse fans on right side + 1 x 140mm ARGB PWM fan in rear
Radiator Support
Top 120 / 140 / 240 / 280 / 360mm
Side 120 / 240 / 360mm
Rear 120 / 140mm
Clearance
Max GPU Length ≤ 450mm
(When overall AIO thickness > 52mm, the length of the graphics card is limited to 280mm.)
Max CPU Cooler Height ≤ 180mm
Max PSU Length (Include cable) ≤ 210mm
Miscellaneous
Dust Filter  Front / Left Side / Bottom
Net Weight 11.7Kg
Gross Weight 14.2Kg
Warranty  2Years
UPC# 0-761345-10135-6
