ax51
Mid-Tower Gaming Case
  • AX51 (Pre-installed 3 x 120 mm ARGB fans in front)
  • AX51 Elite (Pre-installed 3 x 120mm ARGB fans in front + 1 x 120mm ARGB fan in rear)
Unique Design &
Powerful Heat
Dissipation

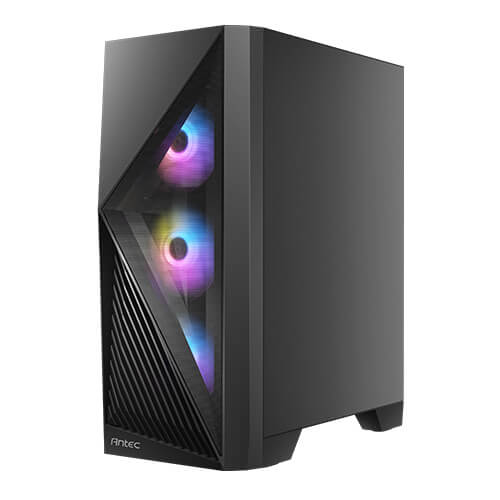

The front panel adopts the design of multiple materials such as slanted bars and three-dimensional triangled mesh to enhance the airflow and dust prevention. The front panel creates various ARGB lighting effects as well.
Slanted Bar Air
Intake Design
High-Airflow
Front Panel
All-round airflow paths provide highly efficient cooling. Air intakes at the front and bottom ensure outstanding heat dissipation.
Pre-Installed 3 x 120mm
ARGB fans at front
Work in sync with the motherboard.

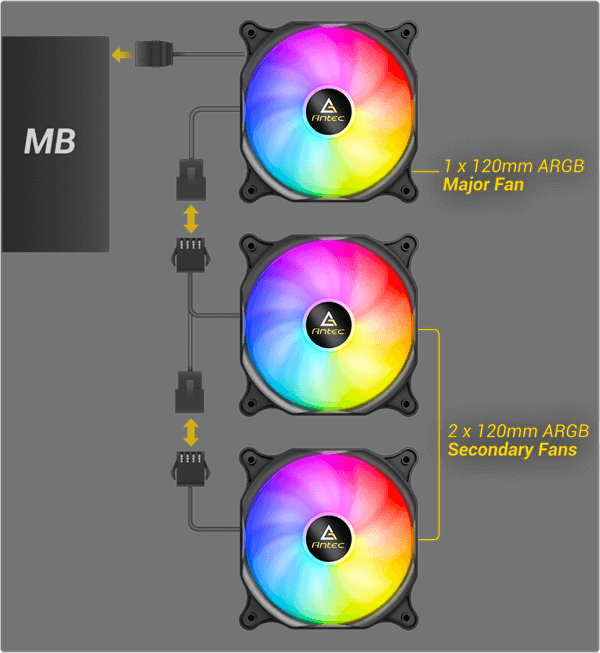

In Sync with Motherboard for ARGB Lighting
Use the main case fan to daisy-chain the other two fans for ARGB sync and create your personal style.

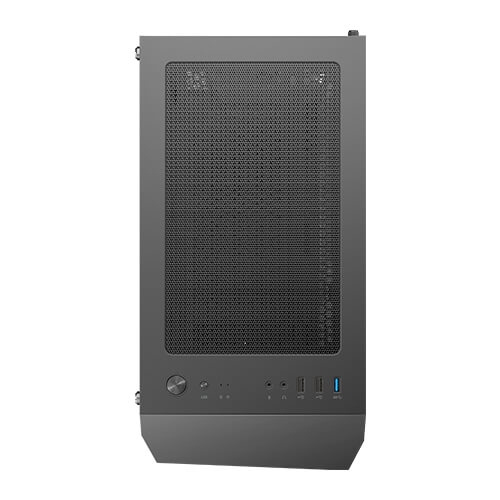

I/O Panel
Power, Reset, USB2.0 x 2, MIC/HD-AUDIO, USB3.0 x 1

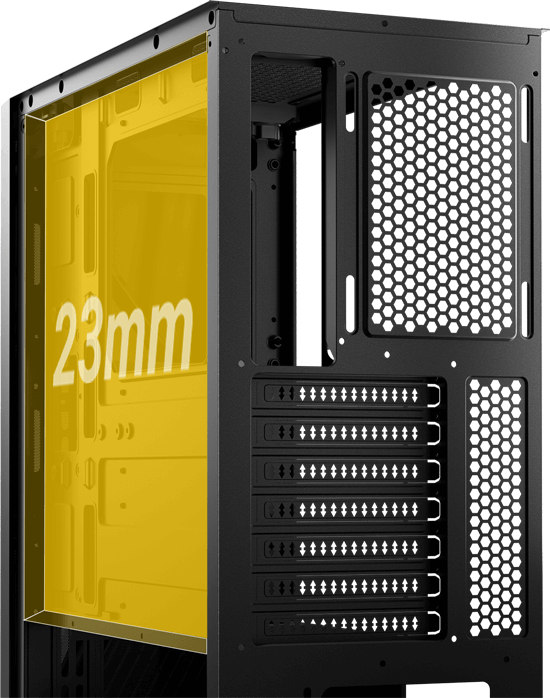

Neat Build within Reach

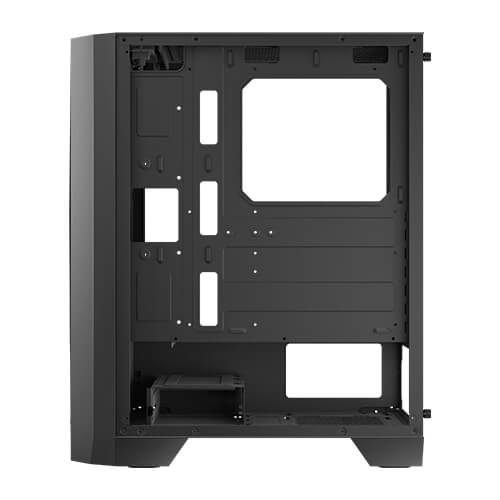

23mm space for cable management ensures your PC build looks neat.
23mm space for cable management ensures your PC build looks neat.
Up to 8 x 120mm Fans Simultaneously
Powerful Cooling Compatibility

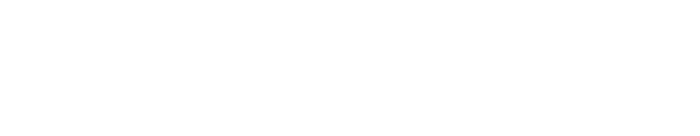

Max. CPU Cooler Height : 155mm. Supports most of the high-end air coolers.

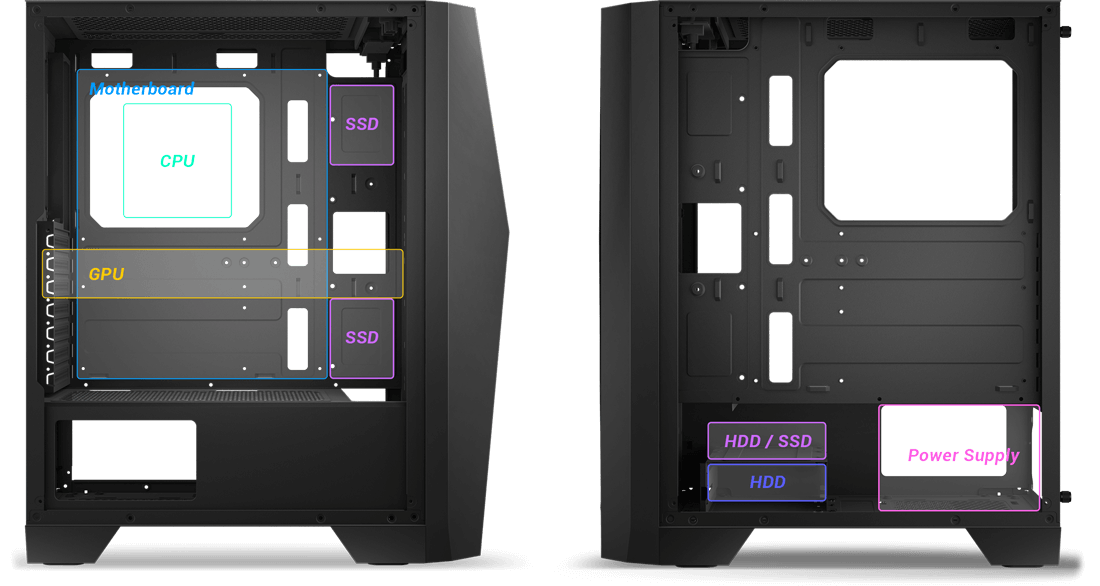

Compatibility
Unlimited Performance
Max. GPU Length : 290mm

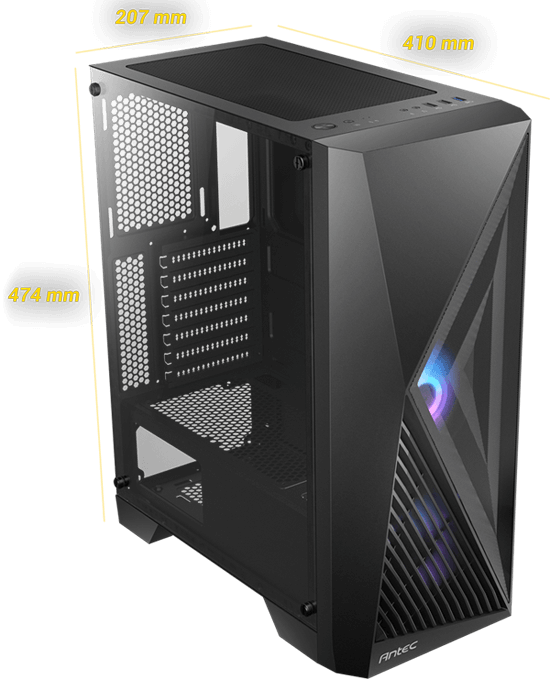

Dimensions
410 x 207 x 474 mm (DWH)
SPECIFICATIONS
main spec
Dimensions 410 x 207 x 474 mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic + Glass
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , MIC/HD-AUDIO
Side Panel Tempered glass

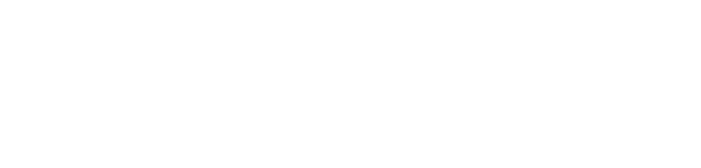

Drive Bays
Expansion Slots 7
3.5" / 2.5" 2 / 1
2.5" 2
Fan Support
Front 3 x 120 mm / 2 x 140 mm
Top 2 x 120 mm
Power supply 2 x120 mm
Rear 1 x 120 mm
Included Fan(s) 3 x 120 ARGB fans in front (AX51)
3 x 120 ARGB fans in front + 1 x 120mm ARGB fan in rear (AX51 Elite)
Radiator Support
Front 120 / 140 / 240 / 280 / 360 mm
Rear 120 mm
Clearance
Max GPU Length 290 mm
Max CPU Cooler Height 155 mm
Max PSU Length 205 mm(with HDD)
330 mm(without HDD)
Miscellaneous
Dust Filter Top / Bottom
Net Weight 4.4kg (AX51) / 4.97Kg (AX51 Elite)
Gross Weight 5.3Kg (AX51) / 5.85Kg (AX51 Elite)
Warranty 1 year
UPC# 0-761345-10061-8 (AX51)
0-761345-10068-7 (AX51 Elite)
