ax20
Mid-Tower Gaming Case
  • AX20 (Pre-installed 3 x 120 RGB fixed model fans in front)
  • AX20 Elite (Pre-installed 3 x 120 RGB fixed mode fans in front + 1 x 120 RGB fixed mode fan in rear)
Unique Design &
Powerful Heat
Dissipation

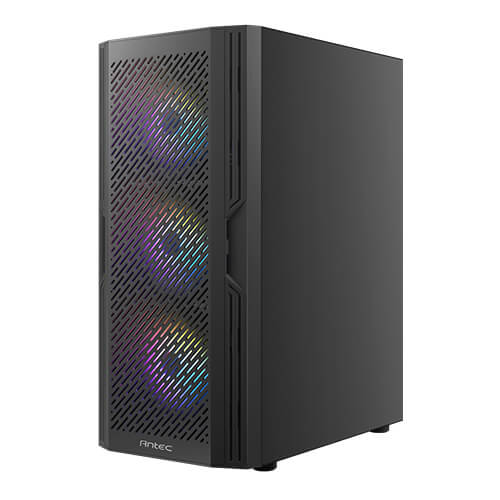

AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.
Slanted Bar Air
Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.

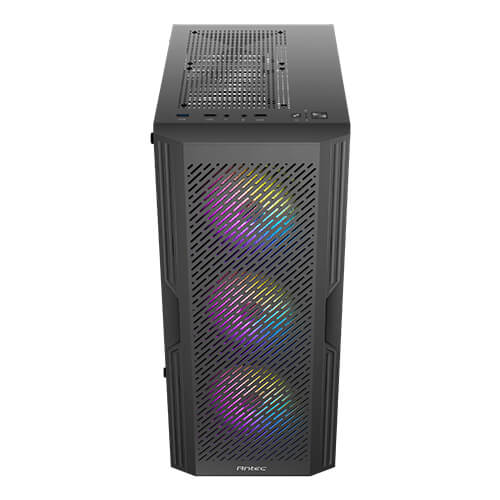

High-Airflow
Front Panel
Massive air intake at the front, top,
and bottom. Creating multiple airflow paths.
Pre-Installed 3 x 120mm
RGB Fixed Model Fans
I/O Panel
Power, Reset, USB2.0 x 2, MIC/HD-AUDIO, USB3.0 x 1
Up to 8 x 120mm Fans Simultaneously

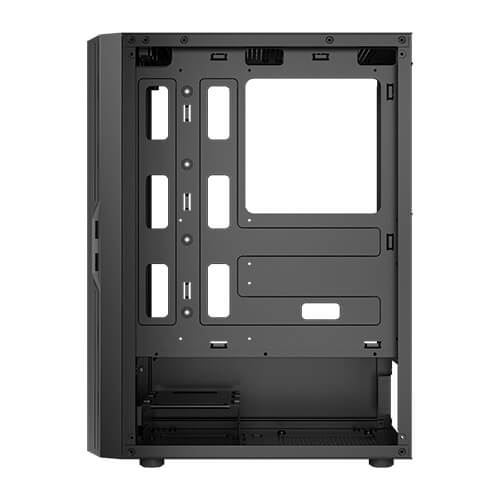

Compatibility
Dimensions
358 x 207 x 451 mm (DWH)
SPECIFICATIONS
main spec
Dimensions 358 x 207 x 451mm (DWH)
Form Factor Mid Tower
Materials Steel+Plastic
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls Power,Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO
Side Panel Tempered glass
Drive Bays
Expansion Slots 7
3.5" /2.5" 2 / 1
2.5" 2
Fan Support
Front 3 x 120mm / 2 x 140mm
Top 2 x 120mm
Power supply 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 3 x 120 RGB fixed model fans in front (AX20)
3 x 120 RGB fixed mode fans in front + 1 x 120 RGB fixed mode fan in rear (AX20 Elite)
Radiator Support
Front 120 / 140 / 240 / 280mm
Clearance
Max GPU Length ≤ 270mm
Max CPU Cooler Height ≤ 155mm
Max PSU Length ≤ 170mm(with HDD)
≤ 295mm(without HDD)
Miscellaneous
Dust Filter Front
Net Weight 4 Kg (AX20) / 4.12 Kg (AX20 Elite)
Gross Weight 4.71 Kg (AX20) / 4.83 Kg (AX20 Elite)
Warranty 1 year
UPC# 0-761345-10060-1 (AX20)
0-761345-10066-3 (AX20 Elite)
